Product Details:
|
| Material: | LDPE | Color: | Can Be Customized |
|---|---|---|---|
| Thickness: | 0.2mm-4mm | Width: | 1m~6m |
| Application: | Landfill,Pond,Fish Farm | Length: | 50-200m |
| High Light: | LDPE Geomembrane plastic liner landfill,plastic liner landfill 1m 2m,LDPE Landfill Geomembrane |
||
Functions:
● Protection
● Erosion control
● Waterproof
● Quarantine
● Sufficient tensile strength
● High resistance to puncture
● High resistance tear
● High resistance cracking
Features and benefits:
● Very good impact resistance.
● It is stiffer than low density polyethylene.
● Excellent thermal and chemical resistance.
● High tensile strength and high resistance to tear and puncture.
● Acid resistant, resistant to water at 100º Celsius and most common solvents.

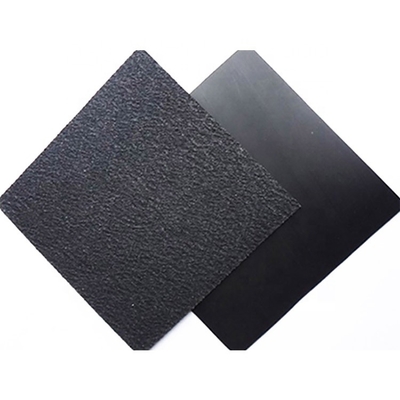

● Textured surfaces to reduce slippage of adjacent materials; Smooth surfaces to lower permeability.
● Geomembranes offer sufficient tensile strength and high resistance to puncture.
LDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Geomembrane production
LDPE geomembrane is made by 100% virgin materials
Geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.
Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
