50kn Plastic Geogrid Mesh

50kn Plastic Geogrid Mesh
50kn Plastic Geogrid Mesh 50kn Plastic Geogrid Mesh 50kn Plastic Geogrid Mesh 50kn Plastic Geogrid Mesh 50kn Plastic Geogrid Mesh 50kn Plastic Geogrid Mesh

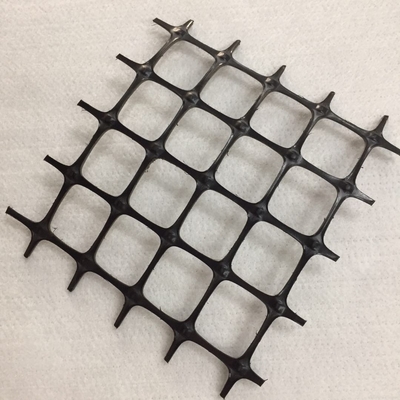

Large Image :  50kn Plastic Geogrid Mesh

Product Details:
Place of Origin: CHINA
Brand Name: HASSAN
Certification: ISO CE
Model Number: PP50
Payment & Shipping Terms:
Minimum Order Quantity: 2000METERS
Price: USD0.1-2.0/M2
Packaging Details: General Packing or According to Customer′s Require
Delivery Time: 5-8 WORK DAYS
Supply Ability: 30000METERS/WEEK

50kn Plastic Geogrid Mesh

Description
Product Name: Plastic Geogrid Mesh Tensile Strengt: 50kn
Material: Polypropylene Certification: ISO CE
Outlook: Biaxial Width: 1-6m
High Light:

50kn Plastic Geogrid Mesh

,

6m polypropylene Plastic Geogrid Mesh

,

50kn geo grid mesh

50kn Foundation Material Plastic PP Geogrid for Road Construction

Product Introduction:

The outlook of the Bi-directional(Biaxial)plastic geogrid is network structure like a square, it uses polypropylene as its raw material through extrusion, formed and punched before longitudunally and laterally stretched. This kind of material has high tensile force longitudinally and horizontally, which can be widely hued to reinforce basement.
Technical standards:

Specification

TGSG

15-15

TGSG

20-20

TGSG

30-30

TGSG

40-40

TGSG

45-45

vertical tensile strength per extended meter(KN/m)> 15 20 30 40 45
Horizontal tensile strength perextended meter(KN/m)> 15 20 30 40 45
Vertical elongation ratio (%)≤     13
Horizontal elongation ratio(%)≤     16
Vertical stretching force at 2% elongation(KN/m) ≥ 5 8 11 13 16
Horizontal stretching force at 2% elongation (KN/m)≥ 7 10 13 15 20
Vertical stretching force at 5% elongation (KN/m)≥ 8 10 15 16 25
Horizontal stretching force at 5% eloangtion (KN/m)≥ 10 13 15 20 22
Width(m) 1-6








Application:

* All kinds of roads, railways, airports to enchance the roadbed.
* large car park and terminal freight yard.etc. to strengthen the foundations of a permanent load.
* It can be applied to soil as a secondary enhancement after the uniaxial geogrid, further enhance the slope, prevent water loss and soil erosion.
* Ehance the culvert.
* Protect the rail and road slope.
* Reinforce the mining and tunnel.
* Special network used for animal husbandry.
* Special network used for cage fishing.
