Product Details:
|
Geotextile Type: | Woven Geotextiles | Color: | Black |
---|---|---|---|
Material: | 100% Polypropylene | Width: | Can Be Custom-made |
Length: | Can Be Custom-made | Weight: | 100--800g/M2 |
Application: | Coastal Protection | Size: | Can Be Custom-made |
Sample: | Free Stock Sample | ||
High Light: | geotextile dewatering tubes erosion protection,Geotextile Dewatering Tubes PP 120KN,ultra dewatering bag PP 120KN |
Product Application

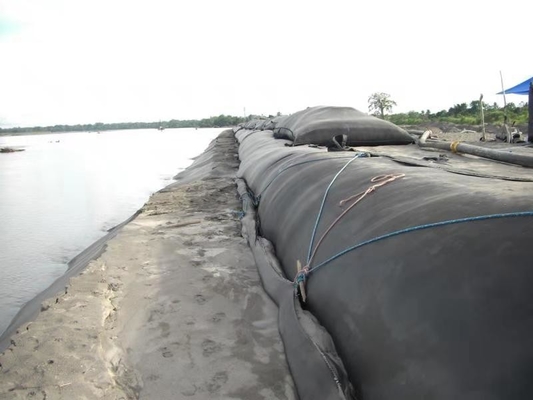

Geotechnical dewatering bag made of high strength PP woven geotextile fabrics large bag , the diameter can be varied according to needs, the most has been more than tens of meters long.Geotechnical dewatering pipe bag was initially used in dike engineering, but now it has been applied to environmental protection, agriculture and other fields after the efforts of the majority of technical workers. With the deepening of people's research, its application field will be more and more extensive.
This knowledge technology have a three-step process:
Frist Step:
Filling -- The bag body is made of high strength, sludge (dredged material) is pumped into the dewatering bags. Environmentally-safe flocculant polymers are added to the sludge water, which makes the solids bind together and water separate. The dewatering bags unique fabric confines the fine grains of the material.
Second Step:
Dewatering -- The clear effluent water simply drains from the dewatering bags through the small pores in the specially engineered textile. This results in effective dewatering and efficient volume reduction of the contained materials. The bag body can be filled repeatedly until the allowable height of the bag material is reached,
. Over 98% of solids are captured, and clear filtrate water can be collected and recirculated through the system. The decanted water is often of a quality that can bereturned for processing or returned to native waterways without additional treatment.
Last Step:
Consolidation -- After repeated filling and drainage, the fine particles left in the bag will gradually solidify due to drying. After the final cycle of filling and dewatering, the solids remain in the bag and continue to densify due to desiccation as residual water vapor escapes through the fabric. Volume reduction can be as high as 92 percent. When full, the dewatering bags and contents can be deposited at a landfill, remain on-site, or the solids can be removed and land-applied when appropriate.
Dewatering bags Main Features
1. Use high tensile strength PP new material, with low deformation
2. Steady property, not easy to resolved, air slaked and can keep the original property long time
3. Anti-acid, anti-alkali, anti-UV, anti-aging,resists insects and mould
4. Could control the sieve size to retain certain permeability according to the pump pressure.
5. Effective high volume containment
6. Efficient dewatering and volume reduction
7. Easy construction,good economical benefit.
8. No special equipment required
9. Environmental protection
