Product Details:
|
| Material: | HDPE | Color: | Can Be Customized |
|---|---|---|---|
| Package: | Woven Bag | Length: | 50-200m/roll |
| Width: | 1-5.8m | Thickness: | 0.2-5mm |
| High Light: | Biofloc Anti Seepage HDPE geomembrane sheet,Geotextile geomembrane sheet for biofloc,Anti Seepage Composite geomembrane Sheet |
||
2022 Hot Sale High Quality Geotextile Anti-Seepage Biofloc Geomembranes Composite Geomembrane
Product Description:
1. High Density Polyethylene Geomembranes
HDPE geomembranes are produced from high quality high density polyethylene and are designed to meet or exceed the specifications published by GRI or other levels for HDPE (GRI GM 13,G/T or CJ). Our products are available in a variety of colors such as green for more aesthetic landfill caps and white for a solar reflective upper surface. The upper surface, lower surface, or both surfaces can be textured for use in applications where increased frictional resistance is required. The bottom surface can be comprised of a patented conductive layer to enable liner integrity surveys to be performed following installation of the liner.
2. CHEMICAL RESISTANCE
HDPE is the most universal polymer used for geomembranes because of its proven chemical resistance,durability, and low permeability. HDPE is resistant to a wide variety of chemicals including aromatic and halogenated hydrocarbons. The chemical resistance of HDPE is especially helpful in applications that require harsh chemicals such as mining heap leach facilities, hazardous waste landfills, and in most containment facilities within chemical plants. Because of these factors and the broad and successful history of HDPE geomembranes, regulators are very familiar with these products and their usage.
HDPE Geomembrane pond liner Technical Parameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Packing and Shipping

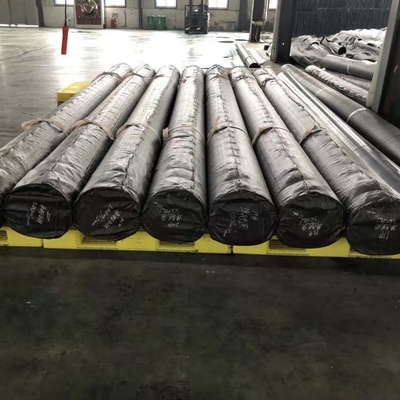

1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
Contact Person: Mrs. Grace Sun
Tel: 86-155 8864 6508
