Product Details:
|
| Material: | HDPE | Color: | Can Be Customized |
|---|---|---|---|
| Thickness: | 0.2-4mm | Package: | Woven Bag |
| Feature: | Good Physical And Mechanic Performance | Length: | 50-100m/roll Or As Your Requirement |
| High Light: | 2.5mm 3mm HDPE Geomembrane Liner,HDPE Liner Sheet ISO9001,ISO9001 HDPE Geomembrane Sheet |
||

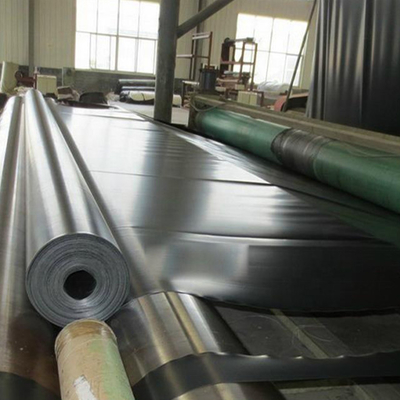

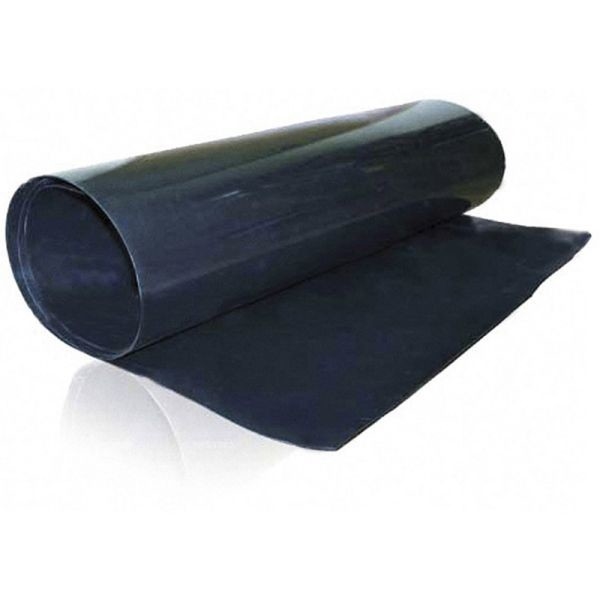

HDPE Geomembrane:
HDPE Geomembrane is the low permeable synthetic geomembrane liner and geotechnical engineering materials which are widely used for acquanculture and water containment applications. BPM HDPE Geomembrane is made of finest quality high density polyethylene (HDPE) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE Geomembrane with excellent resistance to UV radiation and is suitable for exposed conditions. HDPE Geomembrane is the ideal low permeable synthetic material for Shrimp farming.
HDPE Geomembrane pond liner Technical Parameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Application:
1. Prevent leakage disposal in waste burying field or waste water or waste dregs disposing field,river bank,lake dam ,mine remainings ,reservior,tunnel,liquid storage.
2. Preventing leakage in subway ,basement,tunnel ,hole.
3. Anti-solt leakage in roadbed and other groundtill.
4. The plane direction laying of dam ,the vertical direction laying fou groundtill ,used in the construction fence and waste material field.
5. Used in seawater or freshwater feed field, groundtill of road,highway ,railway and waterproof layer of swelling clay and wet collapsed loess.
Features:
1. Good physical and mechanic performance.
2. High tearing resistance, strong deformation adaptability.
3. Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance.
4. Good adaptability to high and low temperature, non-toxicity, long service life.
5. Good waterproof, drainage, anti-seepage and damp proof effects.
6. Complete width and thickness specifications, low cost and easy installation.
Characteristics:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Blue and green geomembrane
Packing and Delivery:
1. The products are usually tied with packing tape. The packaging size and container capacity of the product are different from the product specifications
2. Container transportation, according to your project request. Production time usually costs 10-20 days.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A:Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A:Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A:Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
