Product Details:
|
| Material: | 100% Recycled Polyester | Length: | 100-200 Meters |
|---|---|---|---|
| Widthx 6 Meters: | Max 6 Meters | Gram Weight: | 100~800 G/m2 |
| Application: | Reinforcement, Filtration, Isolation & Drainage | Process: | Needle Punched |
| High Light: | 12 Oz Recycled Non Woven Geotextile,800 g/m2 Recycled Non Woven Geotextile,800 g/m2 nonwoven geotextile filter fabric |
||

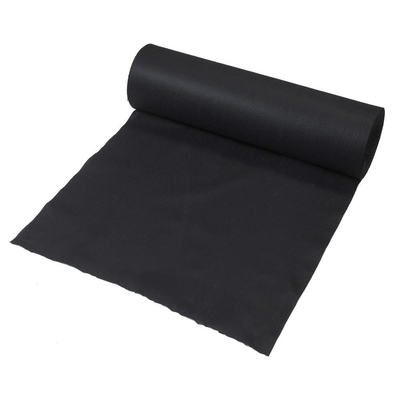

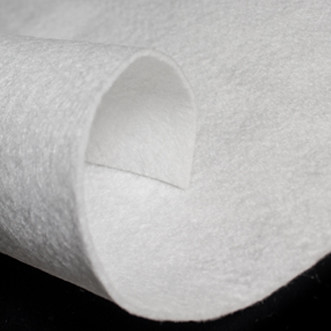

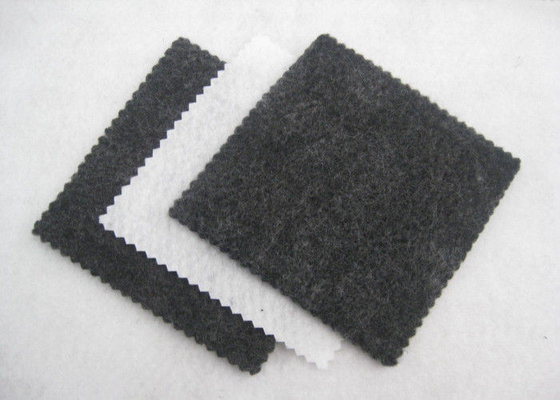

HS-R Series PET Fiber Non Woven Geotextile
HS-R series is a non-woven geotextile made using modern technology. The main production polymer is 100% polyester(PET). It is used to construct retaining structures, linear constructions, waste deposits, drainage systems etc.
| Specification | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark |
| Quality deviation per unit acreage% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| Thickness,mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 | |
| Width deviation for range,%m | -0.5 | |||||||||||
| Mightiness at break,KN/m ≥ | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
| Elongation at break,% | 25-100 | Vertical and horizontal | ||||||||||
| CBR bursting strengthk,KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 | |
| Effective aperture O90(O95)mm | 0.07-0.20 | |||||||||||
| Vertical osmotic coefficient,cm/s | K x(10-1-10-3) | K=1.0-9.9 | ||||||||||
| Tearing strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | Vertical and horizontal |
Application :
* It isolates building materials with different physical features, makes two or multiple materials with outerosion or mixing, keeps overall structure and functions of material and makes load bearing capacity of structure strengthen.
* When water flows into coarse soil layer from soil layer, it uses good gas and water permeation of knitting geotechnical geotextile, allows water flow to pass and effectively holds back soil particle, fine sand andsmall stone so as to keep stability or water onservation project.
* Itis good water guide material, and can form drainage channel in soil body and remove excessive liquid and gas from soil structutre.
* It uses knitting geotechnical cloth to strengthen tension resistance strength and deformation capacity of soil body, to strengthen stability of structure and to improve soil body quality.
* It effectively diffuses, transmits or decomposes central stress and prevents soil body damage by functioning of external force.
* Knitting geotechnical cloth matches other materials and forms nonpermeation Isolation layer.
