Product Details:
|
| Application: | Courtyard, Driveway Retaining Wall | Model Number: | PET |
|---|---|---|---|
| Geotextile Type: | Non-Woven Geotextiles | Fiber Type: | Short Fiber, Long Fiber |
| Certification: | ISO CE | Product Name: | Terram Geotextile Membrane |
| High Light: | 800gsm Terram Geotextile Membrane,Terram Geotextile Membrane Macetero,800gsm Terram pp geotextile non woven |
||
800gsm terram macetero geotextile ce geotextile filament
1) Geotextile can make the water flow easily, and form a drainage channel in the soil, and then make the liquid and gas out of the soil.
2) Make use of its pulling resistance and deformation resistance that can strength the soil to reinforce the stability of the construction structure and improve the soil’s quality.
3) Make the focus proliferate, deliver and decompose efficiently and prevent the soil from destruction from outside factor.
4) Prevent the top and bottom layer’s gravel, soil and concrete from mixer.
5) The mesh cannot be plugged easily – for the strain and moving quality of the network that formed by the antitype fiber.
6) High soaking quality—at the pressure of soil, it also can keep good soaking quality.
7) Corrosion resistant – using the polypropylene and polyester as raw material, it can resist the sour and aid, erosion, boring and oxidation.
8) The construction is easy; the weight is light, convenient for using, and it making construction easy.
| Item | Unit | Index | ||||||||||||||||||
| 100g | 150g | 200g | 250g | 300g | 350g | 400g | 500g | 600g | 800g | |||||||||||
| Grab Tensile Strength(MD/CD) | N | ≥350 | ≥600 | ≥800 | ≥850 | ≥1100 | ≥1300 | ≥1500 | ≥2000 | ≥2400 | ≥3200 | |||||||||
| Grab Elongation(MD/CD) | % | 50-90 | 50-100 | |||||||||||||||||
| Trapezoidal Tear Strength(MD/CD) | N | ≥135 | ≥200 | ≥350 | ≥380 | ≥420 | ≥470 | ≥500 | ≥580 | ≥660 | ≥840 | |||||||||
| CBR Mullen Burst Strength | KN | 1.3 | 1.8 | 2.0 | 2.5 | 3.5 | 4 | 4.3 | 5.5 | 6.5 | 8.5 | |||||||||
| Breaking Strength | KN | ≥5.0 | ≥5.5 | ≥11 | ≥12 | ≥16 | ≥19 | ≥22 | ≥28 | ≥35 | ≥50 | |||||||||
| Breaking Elongation | % | 50-100 | 50-90 | |||||||||||||||||
| Dry Sieve Size O90 | mm | |||||||||||||||||||

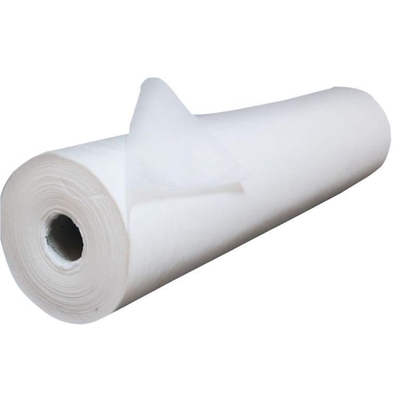

White PP Non Woven Geotextile
| Specifications | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
| Deviation of mass per unit(%) | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | - |
| Thickness(mm≥) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | - |
| Deviation of width(%) | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | - |
| Tensile strength(KN/m≥) | 4.5 | 7.5 | 10.0 | 12.5 | 15.0 | 17.5 | 20.5 | 22.5 | 25.0 | 30.0 | 40.0 | Longitudinal Horizontal |
| Break elongation ratio(≤%) | 40-80 | - | ||||||||||
| CBR bursting strength(KN≥) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3.0 | 3.5 | 4.0 | 4.7 | 5.5 | 7.0 | - |
| Equivalent opening size090(095)mm | 0.07-0.2 | - | ||||||||||
| Tearing strength (KN≥) | 0.14 | 0.21 | 0.28 | 0.36 | 0.42 | 0.49 | 0.56 | 0.63 | 0.70 | 0.82 | 1.10 | Longitudinal Horizontal |
| Property | High strength,Anti-acid and alkali,Abrasion resisting,Flexibility,and easy for construction. | |||||||||||
| Size of package | Width 1-6m,length 50-100m(or as request) | |||||||||||
