Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection

Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection
Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection

Large Image :  Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection

Product Details:
Place of Origin: CHINA
Brand Name: HASSAN
Certification: CE ISO9001
Model Number: HS-N
Payment & Shipping Terms:
Minimum Order Quantity: 1,000 square meters
Price: 0.3~0.95 USD PER SQM
Packaging Details: Standard Export Packing
Delivery Time: 3-5 Days
Payment Terms: L/C, T/T

Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection

Description
Material: 100% Virgin Polyester Length: 100-200 Meters
Width: Max 6 Meters Gram Weight: 100~800 G/m2
Application: Reinforcement, Filtration, Isolation & Drainage Process: Needle Punched
High Light:

Pp Non Woven Geotextile

,

Needle Punched Pp Non Woven Geotextile

,

Pet Nonwoven Geotextile Fabric

Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection



HS-N series is a non-woven geotextile made using modern technology. The main production polymer is 100% virgin polyester(PET). It is used to construct retaining structures, linear constructions, waste deposits, drainage systems etc.



  • combines filtration properties and high water permeability
  • high resistance to puncture and abrasion
  • large choice of thickness of material (weight)
  • top level protection at high strain
Specification 100 150 200 250 300 350 400 450 500 600 800 Remark
Quality deviation per unit acreage% -6 -6 -6 -5 -5 -5 -5 -5 -4 -4 -4
Thickness, mm≥ 0.8 1.2 1.6 1.9 2.2 2.5 2.8 3.1 3.4 4.2 5.5
Width deviation for range, %m -0.5
Mightiness at break, KN/m ≥ 4.5 7.5 10.0 12.5 15.0 17.5 20.5 22.5 25.0 30.0 40.0 Vertical and horizontal
Elongation at break, % 40-80
CBR bursting strength, KN≥ 0.8 1.4 1.8 2.2 2.6 3.0 3.5 4.0 4.7 5.5 7.0
Effective aperture O90 (O95) mm 0.07-0.20
Vertical osmotic coefficient, cm/s K x(10-1-10-3) K=1.0-9.9
Tearing strength, KN≥ 0.14 0.21 0.28 0.35 0.42 0.49 0.56 0.63 0.70 0.82 1.10 Vertical and horizontal

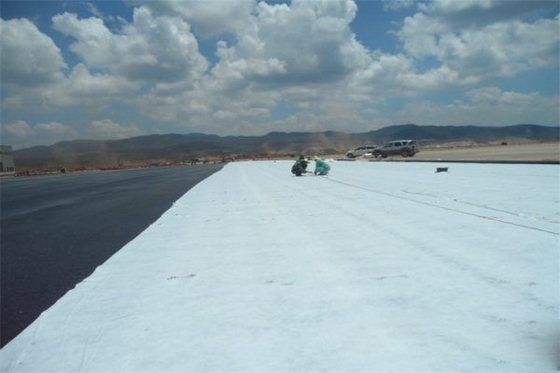

Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection 0



Application :

* It isolates building materials with different physical features, makes two or multiple materials with outerosion or mixing, keeps overall structure and functions of material and makes load bearing capacity of structure strengthen.

* When water flows into coarse soil layer from soil layer, it uses good gas and water permeation of knitting geotechnical geotextile, allows water flow to pass and effectively holds back soil particle, fine sand andsmall stone so as to keep stability or water onservation project.

* Itis good water guide material, and can form drainage channel in soil body and remove excessive liquid and gas from soil structutre.

* It uses knitting geotechnical cloth to strengthen tension resistance strength and deformation capacity of soil body, to strengthen stability of structure and to improve soil body quality.

* It effectively diffuses, transmits or decomposes central stress and prevents soil body damage by functioning of external force.

* Knitting geotechnical cloth matches other materials and forms nonpermeation Isolation layer.

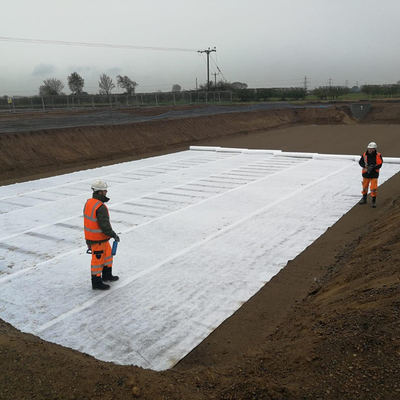

Needle Punched Pp Or Pet Non Woven Geotextile For Environment Protection 1
