Product Details:
|
| Material: | Glassfiber | Color: | White Or Black |
|---|---|---|---|
| Length: | 50-200m | Thickness: | Can Be Customized |
| Certificate: | CE /ISO9001 | ||
| High Light: | Black Knitted Fiberglass Geogrid Fabric,Fiberglass Geogrid Fabric 25KN,Retaining Wall Road Fiberglass Geogrid |
||
Product Introduction

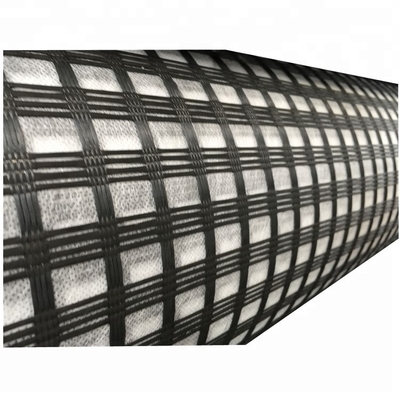

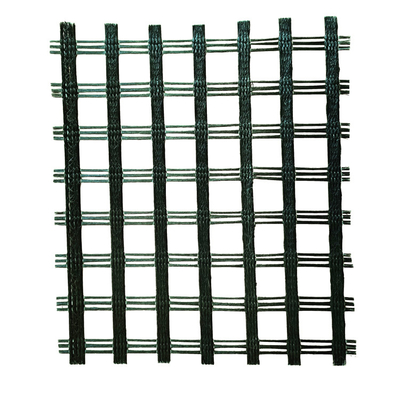

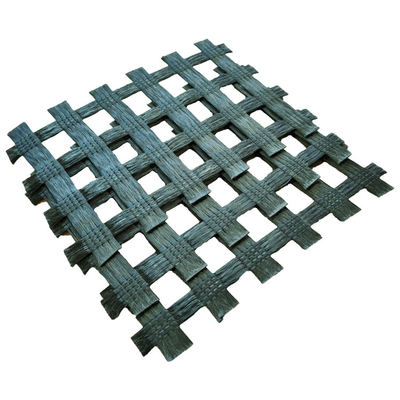

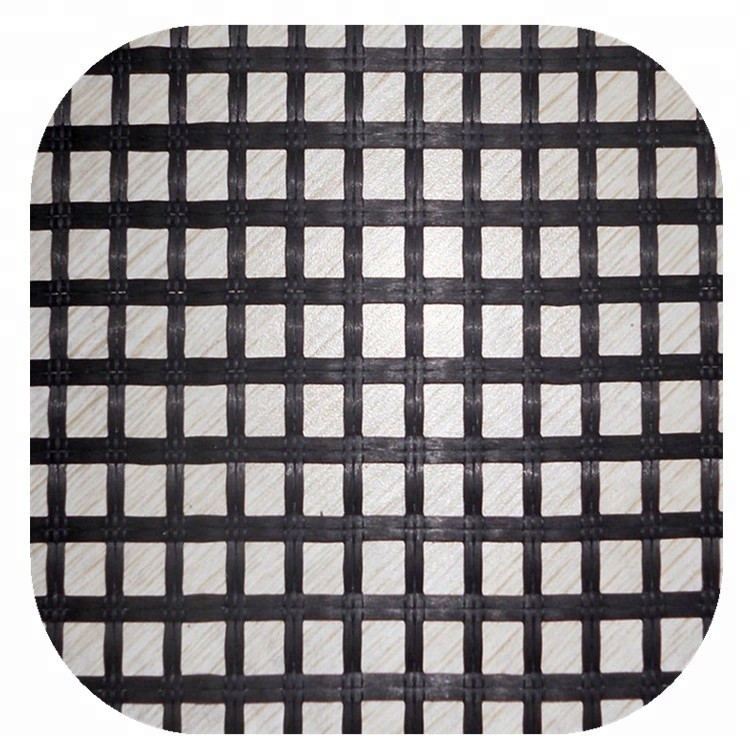

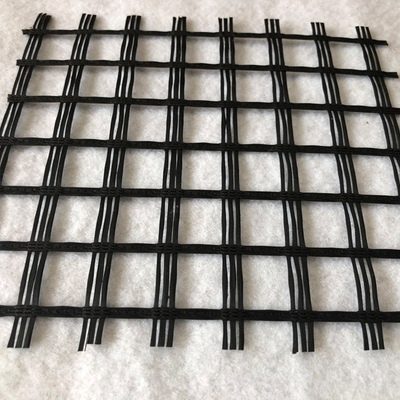

Fiberglass geogrid is made from excellent non-alkali fiberglass filament as the base material coated with adhesive by automatic woven technology.It is the ideal geosynthetic material to reinforce the soft soil, cement, concrete, asphalt for the road surface or roadbed, etc.It can make full use of yarn textile strength and warp knitting directional structure to improve its high tensile strength, excellent tensile modulus, good wear resistance and creep resistance, and excellent thermal stability, etc.
Specification
| Property | Test Method |
TGSB 30-30 |
TGSB 40-40 |
TGSB 50-50 |
TGSB 60-60 |
TGSB 70-70 |
TGSB 80-80 |
TGSB 90-90 |
TGSB 100-100 |
TGSB 120-120 |
TGSB 130-130 |
|
| Ultimate Tensile Strength(1)(Kn/m) | MD | EN ISO 10139 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 |
| CD | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | ||
| Elongation at Maximum Load(%) | MD | 3 | ||||||||||
| CD | 3 | |||||||||||
| Approximate Mesh Size(mm) | 12.7*12.7 25.4*25.4 40*40 | |||||||||||
| Roll Width(m) | 1-6 | |||||||||||
| Roll Length(m) | 50-200 |
|||||||||||
Function
Fiberglass Geogrid Application
Reinforcement of roads and crack prevention for airport runways, taxiways, roads, bridges, parking lots, jointed concrete highways to control reflective cracking.
New highway construction, and other road maintenance or repair jobs to improve pavement life.
Expanding thoroughfares and road lanes.
Asphalt reinforcement at locations subject to intensive vehicle braking or accelerating, important junctions, bus stops etc.
