High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags

High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags
High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags

Large Image :  High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags

Product Details:
Place of Origin: CHINA
Brand Name: HASSAN
Certification: ISO9001
Model Number: TUBE
Payment & Shipping Terms:
Minimum Order Quantity: One Pieces
Payment Terms: L/C, T/T

High Strength Woven Geotextile Dewatering Tube Dewatering Sediment Filter Bags

Description
Geotextile Type: Woven Geotextiles Color: Black
Material: 100% Polypropylene Width: Can Be Custom-made
Length: Can Be Custom-made Weight: 100--800g/M2
Application: Coastal Protection;Sludge Treatment Size: Can Be Custom-made
Sample: Free Stock Sample
High Light:

High Strength Woven Geotextile Dewatering Tube

,

100% Polypropylene Geotextile Dewatering Tube

,

Dewatering Sediment Filter Bags

Geotextile Tubes



High Strength Dewatering Tubes

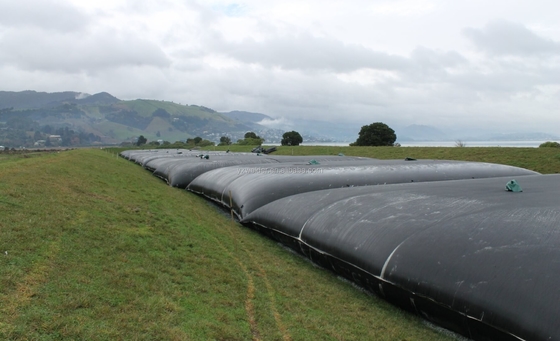

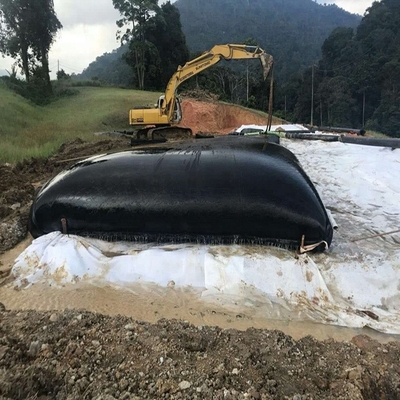

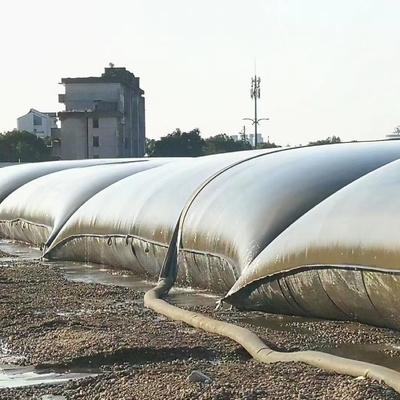

Geotextile tubes are one of the largest and most cost effective options for dewatering a large site, lagoon, or waste water treatment plant. Constructed from a robust woven geotextile material, dewatering tubes are able to effectively remove and contain sludge or sediment from a water flow. With increased size, strength, and durability, sludge tubes are an ideal choice for demanding jobs or heavy containment requirements.





Technical data

Item Unit Technical Parameters
Tube 500 Tube 750 Tube 1000
Breaking strength MD KN/m >= 70 120 200
CD KN/m >= 90 120 200
Elongation of break MD %<= 20 20 20
CD %<= 10 10 10
Sewing Tensile strength >=% 80 80 80
Bursting Strength(CBR) KN>= 8 14 18
Equivalent opening size(O90) mm 0.2-0.6 0.2-0.6 0.2-0.6
Permeability(Q50) L/m2/s>= 20 13 15
UV-resistance(500HRS strength retention) %>= 90 80 80




Similar to dewatering bags, geotextile dewatering tubes are made from permeable fabrics that allow water to pass and filter through the bag. Standard geotube sizes include lengths from 50' to 250' feet and circumferences up to 90'. Custom sizes are also available.

Geotextile Tube Features

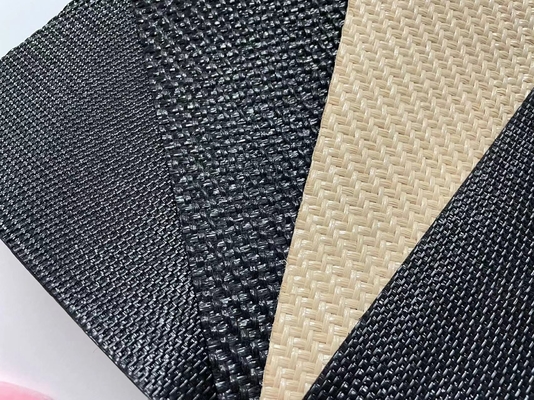

  • geotextile tube in containerFabric: High Strength Geosynthetic Woven Fabric
  • Length: up to 250 ft.
  • Circumference: up to 90 ft.
  • UV Stabilized
  • Available in Black or Tan
  • Geotextile Tubes Flyer
  • Installation Instructions


Geotextile Tube Benefits

  • Designed for Large Dewatering Requirements
  • High Strength Woven Fabrics
  • Large Sizes and Capacities
  • geotextile tube on the coastEffectively Filters out Silt, Sediment, and Waste
  • Easy to Size to your Specific Requirements
  • Multipurpose
  • Rated to Handle Various Chemicals and Contaminated Water





In order to determine the right option for your location, consider several factors:

  • Type of solids you are filtering
  • How many geotextile dewatering tubes are required for the amount of solids you are dewatering
  • Areas available for placement of the dewatering tubes
  • Clear understanding of where the filtered water will flow

Need help with geotube sizes? Call the Haisan Products team or send an email  to discuss your requirements.
