Product Description

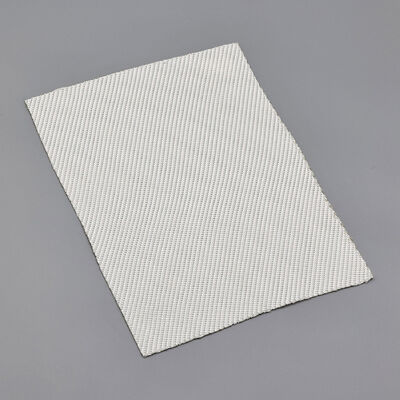

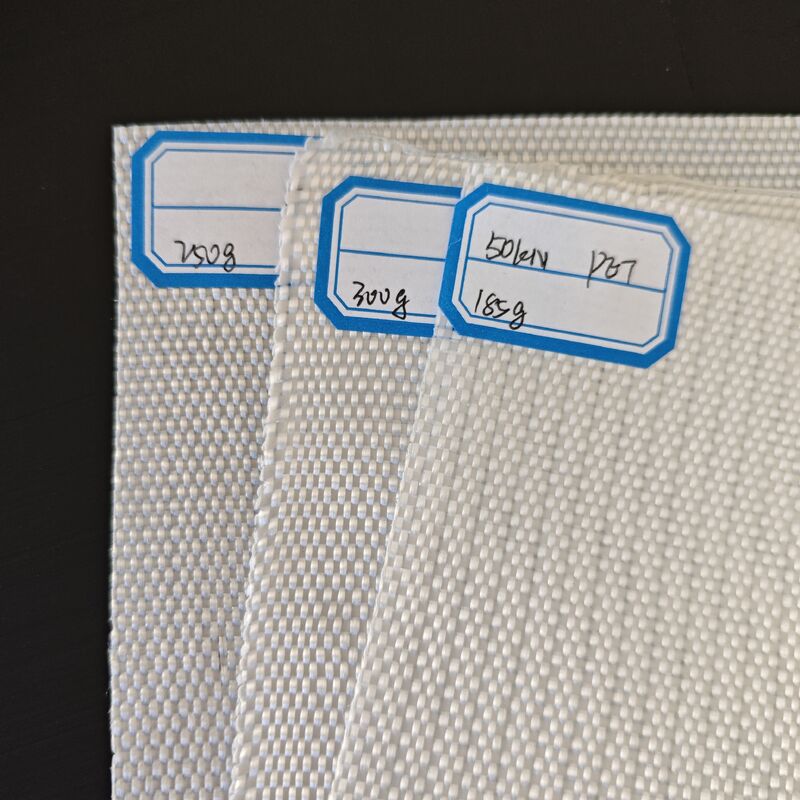

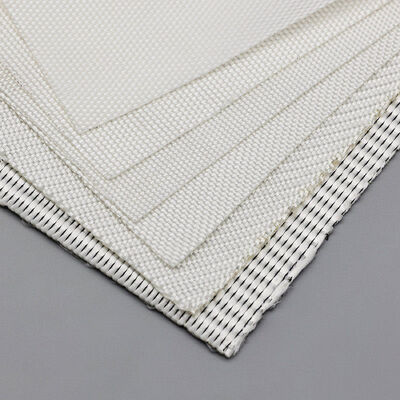

Filament woven geotextile is a high-performance geosynthetic material manufactured from high tenacity polyester (PET) or polypropylene (PP) continuous filament yarns through a precision weaving process. Designed for demanding civil engineering and environmental applications, this geotextile delivers exceptional tensile strength at low elongation, providing immediate reinforcement and stabilization capabilities for soil structures.
PET/PP Filament Woven Geotextile Technical Data
|
Item
|
Unit
|
65x65
|
150x50
|
200x50
|
600x50
|
1000x50
|
200x200
|
|
Tensile strength
|
MD
|
KN/m
|
65
|
150
|
200
|
600
|
1000
|
200
|
|
CD
|
KN/m
|
65
|
50
|
50
|
50
|
50
|
200
|
|
Elongation of break
|
MD
|
%≤
|
10
|
10
|
11
|
11
|
11
|
11
|
|
CD
|
%≤
|
10
|
10
|
10
|
10
|
10
|
10
|
|
Bursting strength
|
KN/m
|
3
|
7.6
|
10
|
/
|
/
|
20
|
|
Equivalent opening size(O95)
|
mm
|
0.05-0.5
|
Application
·Soft Ground Improvement: Reinforcement of weak foundation soils for highway, railway, and airport runway construction, improving bearing capacity and reducing differential settlement
·Retaining Wall and Steep Slope Reinforcement: Tensile reinforcement element in mechanically stabilized earth (MSE) walls and reinforced soil slopes, enabling steeper angles and reducing land take
·Embankment Stabilization: Base reinforcement for embankments constructed over soft soils, preventing rotational and translational failures
·Coastal and Riverbank Protection: Revetment reinforcement, scour protection, and erosion control systems for shorelines, riverbanks, and hydraulic structures
·Landfill Engineering: Foundation reinforcement, capping system stabilization, and basal reinforcement for waste containment facilities
Packing & Delivery
1.Packing: According to customers requirements.
2.Delivery: Within 5-8 days after receiving your deposit.
After Sales Service
1.We have different quality products for viarious projects.
2.We also manufacture it as your specification.
3.We will try our best to resovle your problem in construction.
