High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement

Large Image : High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement

Product Details:

Place of Origin:	CN
Brand Name:	Haisan
Certification:	ISO
Model Number:	hs-long

Payment & Shipping Terms:

Minimum Order Quantity:	1000㎡
Price:	USD 0.1~0.65
Packaging Details:	PP Woven Bag
Delivery Time:	5-10 work days
Payment Terms:	T/T,L/C
Supply Ability:	1000000㎡ per month

Contact Now

High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement

Description

Process:	Needle Punched	Kind:	Non Woven
Usage:	Insulation, Water Filter, Soil Reinforced	Feature:	Corrosion Resistant, Oxidation Resistance, Wear-resistant
Color:	White	Material:	PET
Sample:	Free	Mightiness At Break:	2.5-25.0kN/M Or More
Cbr Bursting Strength:	0.3-4.0kN Or More	Quality Deviation Per Unit Acreage:	-8%, -7%, -6%
Width Deviation For Range:	-0.5%M	Elongation At Break:	25%-100%
Specification:	100~1000g/m2

Technical data of long-silk geotextile

Specification	100	150	200	300	400	500	600	800	Remark
Quality deviation per unit acreage%	-6	-6	-6	-5	-5	-4	-4	-4
Thickness,mm≥	0.8	1.2	1.6	2.2	2.8	3.4	4.2	5.5
Width deviation for range,%m	-0.5
Mightiness at break,KN/m ≥	4.5	7.5	10.0	15.0	20.5	25.0	30.0	40.0	Vertical and horizontal
Elongation at break,%	40-80								Vertical and horizontal
CBR bursting strength,KN≥	0.8	1.4	1.8	2.6	3.5	4.7	5.5	7.0
Effective aperture O90(O95)mm	0.07-0.20
Vertical osmotic coefficient,cm/s	K x(10^-1-10^-3)								K=1.0-9.9
Tearing strength, KN≥	0.14	0.21	0.28	0.42	0.56	0.70	0.82	1.10	Vertical and horizontal

Polyester filament nonwoven geotextile is a high-performance needle-punched fabric manufactured from continuous polyester filaments. Unlike staple fiber products, the continuous filament construction eliminates the risk of fiber migration and provides superior mechanical properties. The fabric features high tensile strength, excellent elongation at break, and outstanding resistance to creep under sustained loads. It offers exceptional UV resistance, chemical stability against acids and alkalis, and strong resistance to biological degradation. The uniform pore structure ensures reliable filtration while maintaining high permeability. With excellent dimensional stability and durability, this geotextile maintains its engineering properties throughout long-term service life in demanding environments.

High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement 0

High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement 1

Application

· Highway and Railway Engineering:Reinforcement and separation layers in high-load subgrades, preventing soil mixing and extending pavement service life

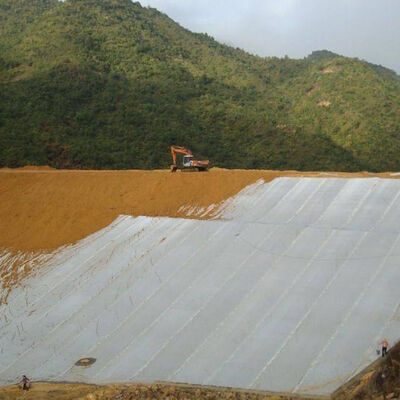

· Landfill Construction: Protective layer for geomembranes, filtration layer in leachate collection systems, and capping applications

· Hydraulic and Water Conservancy Projects: Filtration and drainage in dam construction, canal lining protection, and riverbank reinforcement
· Tunnel and Underground Structures: Protective wrapping for tunnel linings, drainage layer behind retaining walls, and waterproofing system protection
· Mining Applications: Heap leach pad protection, tailings dam filtration, and heap leach pad liner protection
· Sports Field Construction: Base layer stabilization and drainage for athletic fields, golf courses, and stadiums

Specification

100~1000g/m2
Width: max 8 meters

After Sales Service

1.We have different quality products for viarious projects.
2.We also manufacture it as your specification.
3.We will try our best to resovle your problem in construction.
