High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects

Large Image : High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects

Product Details:

Place of Origin:	CN
Brand Name:	Haisan
Certification:	CE
Model Number:	hs-dewatering

Payment & Shipping Terms:

Minimum Order Quantity:	1000㎡
Price:	USD 0.1-1.20
Packaging Details:	PP Woven Bag
Delivery Time:	5-10 work days
Payment Terms:	L/C,T/T
Supply Ability:	1000000㎡ per month

Contact Now

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects

Description

Keyword:	Dewatering Bag	Usage:	Insulation, Water Filter, Dewatering; Coastal Protection
Kind:	Woven	Color:	All Color
Feature:	Corrosion Resistant, Oxidation Resistance, Wear-resistant	Material:	PP/PET
UV-Resistance:	85-90%	Bursting Strength(Cbr):	5-22kN
Permeability:	15-200L/㎡/S	Equivalent Opening Size:	0.4-0.9mm
Specification:	60cm45cm,85cm45cm,95cm35cm,103cm70cm,110cm*50cm	Transport Package:	Woven Geotextile

Dewatering Geotextile Tube Technical Data:

Item		Unit	Technical Parameters
Item		Unit	Tube 500	Tube 750	Tube 1000
Breaking strength	MD	KN/m ≥	70	120	200
Breaking strength	CD	KN/m ≥	90	120	200
Elongation of break	MD	%≤	20	20	20
Elongation of break	CD	%≤	10	10	10
Sewing Tensile strength		≥%	80	80	80
Bursting Strength(CBR)		KN≥	8	14	18
Equivalent opening size(O₉₀)		mm	0.2-0.6	0.2-0.6	0.2-0.6
Permeability(Q₅₀)		L/m2/s≥	20	13	15
UV-resistance(500HRS strength retention)		%≥	90	80	80

Woven geotextile tube is a high-performance geosynthetic container manufactured from high tenacity polyester (PET) or polypropylene (PP) filament yarns through a precision weaving process. The tube is custom-fabricated with sewn seams to form a cylindrical or pillow-shaped structure, designed for hydraulic filling with slurry materials such as dredged sediment, sludge, or sand.

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects 0

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects 1

Applications

1.Sludge Dewatering: Dewatering of dredged material from rivers, harbors, and shipping channels, reducing sludge volume for disposal or reuse.

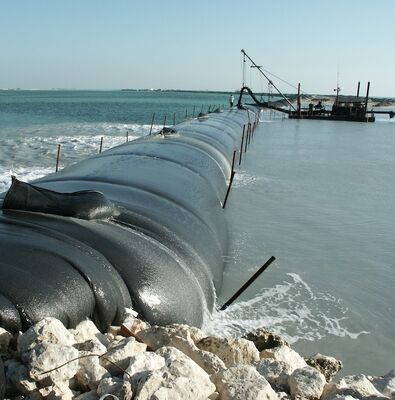

2.Coastal Protection: Shoreline stabilization, erosion control, and breakwater construction against wave action and tidal forces.
3.Embankment Construction: Building stable embankments, levees, and temporary cofferdams for flood control and land reclamation.
4.Wastewater Treatment: Dewatering industrial and municipal sludge in treatment plants, minimizing disposal costs.
5.Agricultural Sediment Management: Removing sediment from irrigation canals, reservoirs, and aquaculture ponds to maintain water quality.
6.Environmental Remediation: Containing contaminated sediment to prevent pollutant migration into surrounding water bodies.

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects 2

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects 3

Specification

*Tensile strength: 70/105,120/120,200/200,250/250,300/300,350/350kN/m

*Diameter: 1.0m~5.0m

*Length: 20m,30m,50m,100m

*Circumference: 5m~30m

Packaging & Shipping

1.Packing: According to customers requirements.
2.Delivery: Within 30~40 days after receiving your deposit.
