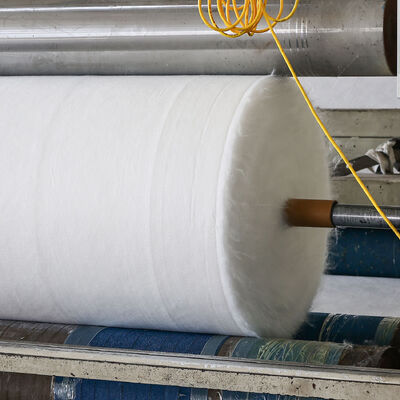

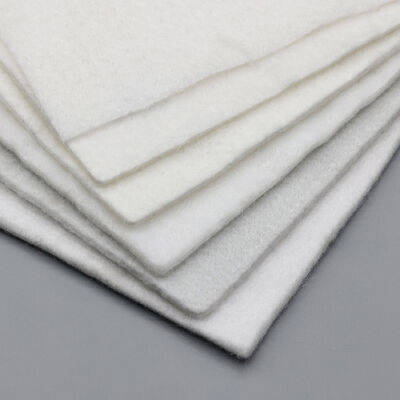

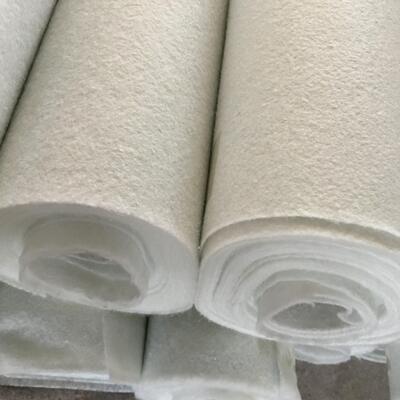

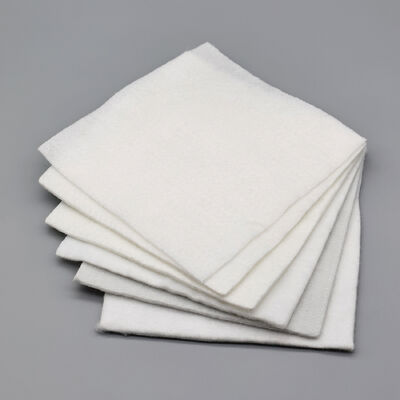

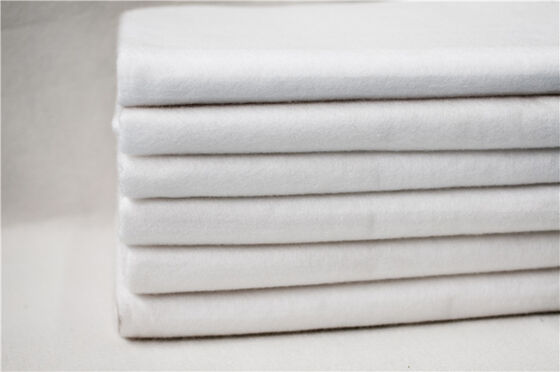

High-Tenacity PET Short Fiber Needle Punched Non Woven Geotextile

Large Image : High-Tenacity PET Short Fiber Needle Punched Non Woven Geotextile

Product Details:

Place of Origin:	CN
Brand Name:	Haisan
Certification:	ISO
Model Number:	hs-nonwoven

Payment & Shipping Terms:

Minimum Order Quantity:	1000㎡
Price:	USD 0.2-3
Packaging Details:	PP Woven Bag
Delivery Time:	5-10 work days
Payment Terms:	L/C,T/T
Supply Ability:	1000000㎡ per month

Contact Now

High-Tenacity PET Short Fiber Needle Punched Non Woven Geotextile

Description

Feature:	Corrosion Resistant, Oxidation Resistance, Wear-resistant	Process:	Needle Punched
Cbr Bursting Strength:	0.3-4.0kN	Material:	PP/PET
Thickness:	0.9-5 Mm	Elongationatbreak:	25-100%
Transport Package:	Customized

High-Tenacity PET Short Fiber Needle Punched Non Woven Geotextile

In modern civil engineering, the integrity of soil structures relies on effective filtration and drainage. Our Short Fiber Needle Punched Non-Woven Geotextile is engineered from premium polyester (PET) or polypropylene (PP) fibers, creating a stable, three-dimensional network that excels in harsh environments.

Unlike woven fabrics, this non-woven material offers superior hydraulic properties, allowing water to pass through while effectively retaining fine soil particles. Its robust thickness and mechanical strength make it an ideal protective layer for geomembranes, preventing punctures in landfills and reservoir projects.

By integrating this geosynthetic fabric into your design, you ensure long-term soil stabilization, reliable erosion control, and enhanced structural longevity for diverse infrastructure applications.

Technical Specifications

Specification	100	150	200	300	400	500	600	800	Remark
Quality deviation per unit acreage%	-8	-8	-8	-7	-7	-6	-6	-6
Thickness, mm ≥	0.9	1.3	1.7	2.4	3.0	3.6	4.1	5.0
Width deviation for range, %m	0.5
Mightiness at break, KN/m ≥	2.5	4.5	6.5	9.5	12.5	16.0	19.0	25.0	Vertical and horizontal
Elongation at break, %	25-100								Vertical and horizontal
CBR bursting strength, KN ≥	0.3	0.6	0.9	1.5	2.1	2.7	3.2	4.0
Effective aperture O90(O95)mm	0.07-0.20
Vertical osmotic coefficient, cm/s	K x(10-1-10-3)								K=1.0-9.9
Tearing strength, KN ≥	0.08	0.12	0.16	0.24	0.33	0.42	0.46	0.60	Vertical and horizontal

Why Choose Our Non Woven Geotextiles?

High-Purity Raw Materials: We use 100% virgin materials to ensure superior aging resistance and chemical stability, avoiding the brittleness associated with recycled content.
Advanced Needle-Punching Technology: Our production process ensures high uniformity in mass and thickness, providing consistent mechanical properties across every roll.
24/7 Technical Support: Our engineering team provides round-the-clock online assistance, helping you with specifications, overlap calculations, and installation guidance.
Tested to International Standards: Every batch is strictly tested for tensile strength, CBR puncture resistance, and permeability in compliance with ASTM and ISO standards.

Primary Applications

Filtration & Drainage: Used in sub-surface drainage systems, French drains, and retaining walls to allow water flow while filtering silt.
Geomembrane Protection: Acts as a heavy-duty cushion layer to protect impermeable liners from mechanical damage in landfills and mining sites.
Road & Railway Construction: Provides effective separation between different soil layers to prevent intermixing and maintain the load-bearing capacity of the subgrade.
Coastal & Hydraulic Engineering: Installed behind rip-rap or armor stone to prevent soil washout in riverbanks and coastal protection systems.

Frequently Asked Questions

Q1: Are you manufacturer or trading company?

A: We are manufacturer. Our factory is in Tai'an, sales office is in Qingdao.

Q2: Which country did you export?

A: Our products have been exported to more than 20 countries all over the world, including USA, Canada, Poland, Switzerland, Japan, Southeast Asia, The Middle East, Africa, Australia etc.

Q3: What is your MOQ?

A: Normally, our MOQ is 20' container. But we could accept LCL for first trial order.
