Product Details:
|
| Item: | Non Woven Geotextile Filter Fabric | Kind: | Non Woven |
|---|---|---|---|
| Use: | Road|highway | Gram Weight: | 100~800 G/m2 |
| Package: | Customerised | Tensilestrength: | 10-50 KN/m |
| Sample: | Accept |

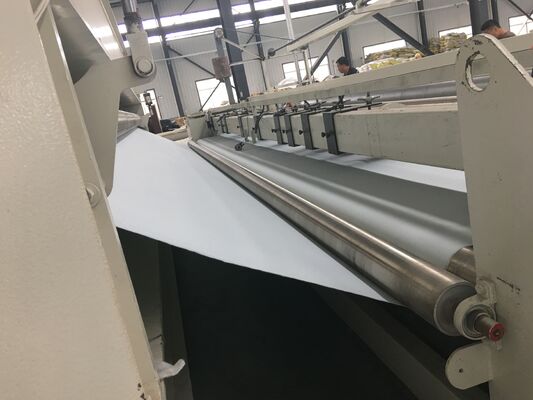

In structural and hydraulic engineering, managing water flow while locking fine soil particles in place is vital for long-term stability. Our high-grade Short Fiber Nonwoven Geotextile is manufactured from short, resilient synthetic fibers that are meticulously carded and needle-punched into a highly porous three-dimensional mat.
This unique interlocking network makes it an incredibly effective filter fabric, offering outstanding water flow rates that prevent hydrostatic pressure buildup beneath pavements and embankments. Unlike rigid barriers, this flexible drainage cloth contours perfectly to rough earth surfaces, acting as a reliable separator that stops different soil strata from mixing. Furthermore, the thick, shock-absorbing properties of this nonwoven protective mat shield critical containment liners from sharp stone punctures, ensuring dependable performance throughout its service life.
| Specification | 100 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | Remark |
|---|---|---|---|---|---|---|---|---|---|
| Quality deviation per unit acreage% | -8 | -8 | -8 | -7 | -7 | -6 | -6 | -6 | |
| Thickness,mm≥ | 0.9 | 1.3 | 1.7 | 2.4 | 3.0 | 3.6 | 4.1 | 5.0 | |
| Width deviation for range,%m | 0.5 | ||||||||
| Mightiness at break,KN/m ≥ | 2.5 | 4.5 | 6.5 | 9.5 | 12.5 | 16.0 | 19.0 | 25.0 | Vertical and horizontal |
| Elongation at break,% | 25-100 | Vertical and horizontal | |||||||
| CBR bursting strengthk,KN≥ | 0.3 | 0.6 | 0.9 | 1.5 | 2.1 | 2.7 | 3.2 | 4.0 | |
| Effective aperture O90(O95)mm | 0.07-0.20 | ||||||||
| Vertical osmotic coefficient,cm/s | K x(10-1-10-3) | K=1.0-9.9 | |||||||
| Tearing strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.24 | 0.33 | 0.42 | 0.46 | 0.60 | Vertical and horizontal |
