Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage

Large Image : Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage

Product Details:

Place of Origin:	CN
Brand Name:	Haisan
Certification:	ISO
Model Number:	hs-nonwoven

Payment & Shipping Terms:

Minimum Order Quantity:	1000㎡
Price:	USD 0.2-4.8
Packaging Details:	PP Woven Bag
Delivery Time:	5-10 work days
Payment Terms:	T/T,L/C
Supply Ability:	1000000㎡ per month

Contact Now

Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage

Description

Item:	Non Woven Geotextile Filter Fabric	Kind:	Non Woven
Use:	Road\|highway	Gram Weight:	100~800 G/m2
Package:	Customerised	Tensilestrength:	10-50 KN/m
Sample:	Accept

Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage

Creating beautiful, long-lasting green roofs or urban landscapes requires efficient drainage layers that stop soil washout. Our lightweight short fiber nonwoven geotextile offers the perfect balance of high water permeability and reliable soil retention. This needle-punched landscape drainage fabric acts like a smart filter, keeping decorative soil or planting media separated from underlying drainage cells and gravel beds. It allows plant roots to breathe and excess water to pass through effortlessly, preventing soggy mud and root rot. For civil landscaping, municipal eco-parks, and residential garden projects, this durable polyester filter fabric is the ultimate choice for clean, clog-free drainage systems.

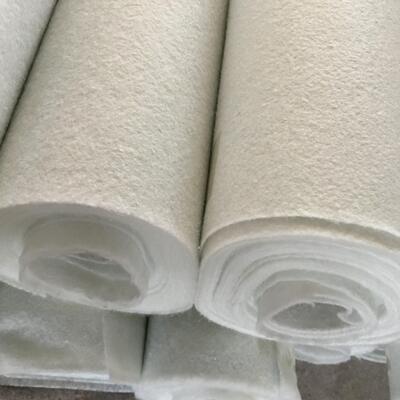

Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage 0

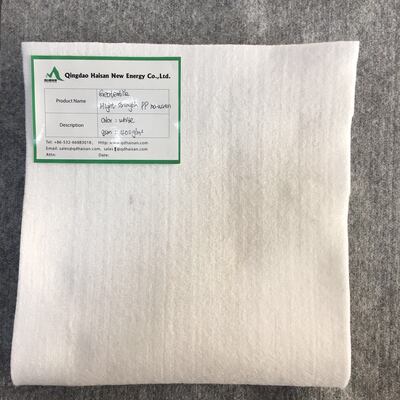

Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage 1

Technical Specifications

Specification	100	150	200	300	400	500	600	800	Remark
Quality deviation per unit acreage%	-8	-8	-8	-7	-7	-6	-6	-6
Thickness,mm≥	0.9	1.3	1.7	2.4	3.0	3.6	4.1	5.0
Width deviation for range,%m	0.5
Mightiness at break,KN/m ≥	2.5	4.5	6.5	9.5	12.5	16.0	19.0	25.0	Vertical and horizontal
Elongation at break,%	25-100								Vertical and horizontal
CBR bursting strengthk,KN≥	0.3	0.6	0.9	1.5	2.1	2.7	3.2	4.0
Effective aperture O90(O95)mm	0.07-0.20
Vertical osmotic coefficient,cm/s	K x(10-1-10-3)								K=1.0-9.9
Tearing strength, KN≥	0.08	0.12	0.16	0.24	0.33	0.42	0.46	0.60	Vertical and horizontal

Why Choose Our Geotextiles?

Customized products meet your requirements: We can customize products to meet your project needs.
Tight Fibers No Loose Fluffs: Our advanced needle-punching process locks the short fibers incredibly tight, so the fabric won't pull apart, fuzz up, or create loose hairs during rough site handling.
Instant Water Flow, Zero Mud Clogging: The precision-engineered pore spacing acts like a perfect micro-sieve—it lets massive water volumes drain out instantly while keeping fine silt locked in place.
No Roll-End Damage in Transit: We use extra-thick protective outer packaging for every single roll, ensuring the edges stay crisp and undamaged from factory loading all the way to your project site.

Primary Applications

Permeable Paver Walkways: Separating the top sand bedding layer from the crushed stone base under walkways to stop pavers from sinking or shifting over time.
Roof Gardens & Planter Boxes: Placed between the growing soil and plastic drainage trays to prevent dirt from washing away and blocking the building’s roof drains.
Sponge City Rain Gardens: Installed in municipal bio-swales and eco-retention ponds to filter muddy rainwater runoff before it recharges underground aquifers.
Under-Turf Base Separation: Laid beneath artificial grass or natural sports sod to keep the sandy foundation flat and level while speeding up rain drainage.

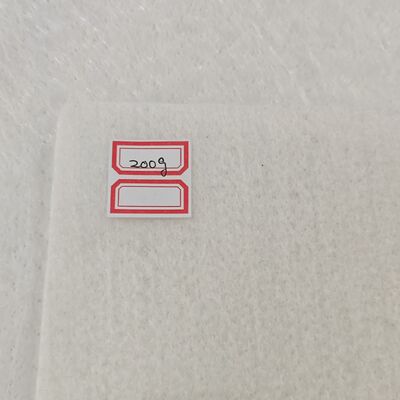

Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage 2

Permeable Short Fiber Nonwoven Geotextile Fabric for Roof Garden and Landscape Drainage 3

Frequently Asked Questions (FAQ)

Q1: Will plant roots damage or tear this Short Fiber Nonwoven Geotextile?
A: No, the dense needle-punched design allows fine roots to pass or press against it without tearing the structural integrity of the landscape drainage fabric.
Q2: Are you manufacturer or trading company?
A: We are manufacturer.
Q3: What is your MOQ?
A: Normally, our MOQ is 20' container. But we could accept LCL for first trial order.
