Product Details:
|
| Type: | Geomembranes | Color: | Black,white,Customized |
|---|---|---|---|
| Thickness: | 0.2mm-4mm | Width: | 1m~6m |
| Application: | Landfill,Pond,Fish Farm,dam,Fish Farming Tank | Length: | 50-200m |
| High Light: | 0.75mm LDPE Geomembrane Liner,LDPE Geomembrane Liner Shrimp,Shrimp Geomembrane Pond Liner |
||

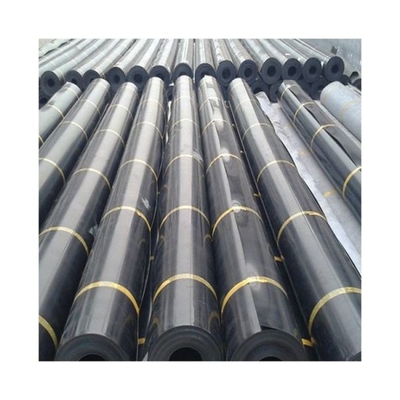

100% New Material 0.75mm LDPE Geomembrane Shrimp Pond Liner
Basic Details Geomembrane; pond liner
1. Main Thickness:0.1mm,0.2mm,0.3mm,0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm,3.0mm,4.0mm,5.0mm
2. Main Width:4m, 5m, 5.8m, 6.0m, 7m, 8m,10m
3. Main Length:50m/100m
4. Main Color: black, white, blue, green
5. Optional surface: Textured or Smooth surface.
6. Material:HDPE, LDPE,LLDPE,EVA
7. Certificate & Test: ISO, TRI, SGS
8. Quality Control: Third party test and factory lab test
LDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
LDPE Geomembrane and pond liner is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
Characteristics:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Main Features:
1. UV resistance
2. Anti-seepage;
3. Isolation
4. High tearing resistance
5. Puncture-resisting
Blue and green geomembrane
Geomembrane production
LDPE geomembrane is made by 100% virgin materials
Geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.

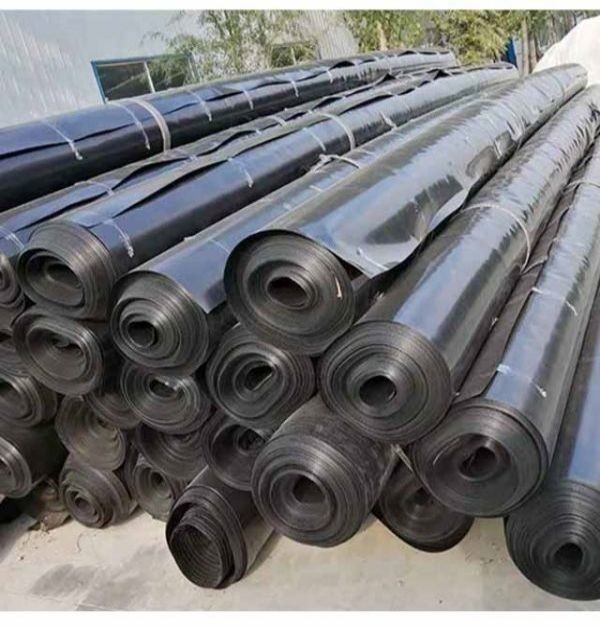

Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
LDPE Geomembrane Application:

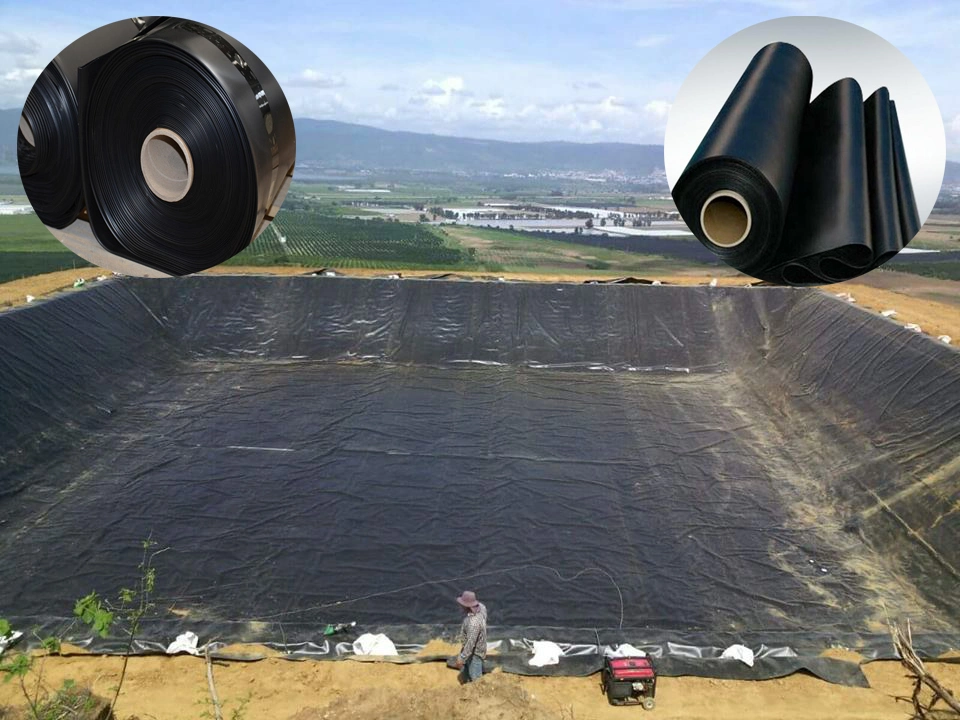

(1) Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.
(2) Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3) Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4) Mining:
HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
