Product Details:
|
| Color: | Black | Application: | Retaining Wall, Dam, Railway, Highway |
|---|---|---|---|
| Function: | Distributing Load, Anti-deforming, Non-skid | Feature: | FeatureCorrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant |
| Product Name: | Plastic Geocell For Slope Protection | Model: | GM356 |
| High Light: | Wall Retaining Plastic Geocell,Plastic Geocell For Slope Protection,Cellular Confinement geocells in road construction |
||
China Manufacturer Slope Protection Soil Reinforcement Landscaping Cellular Confinement System Gravel Stabilizer Geocell
Geocell with texture and perforation
Geocell is made of ultrasonically-welded HDPE and can be expanded to form honeycomb structure.

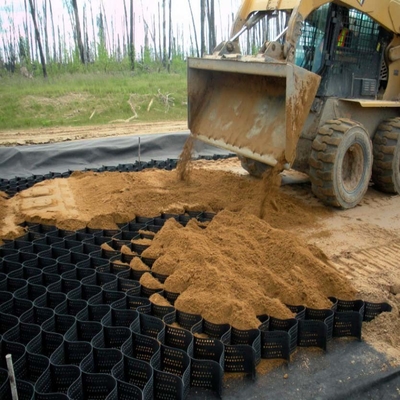

Cells are then filled with readily available granular materials and compacted.
The Geocell solution means to challenge soil stability problems in lots of applications through the high-strength network of interconnected cells.
How Ceocell Works
When filled with compacted materials,it creats a new composite entity that possesses enhanced mechanical and geotechnical products.
When the soil contained within Geocell is subjected to pressure,it causes lateral stress on perimeter cell walls.
| Model | Bonded Range(mm) | ▲Cell Depth (mm) | Sheet Thickness (mm) | Expanded Cell Size (mm) | ▲Cells Quantity | Section Size (m) | Cells Per Section | Section Area (m2) |
| GM356 | 356 | 75 | ≥1.25 ≥1.50 ≥1.75 | 251.45x251.45 | 10(Width) 29(Length) | 2.52x7.30 | 290 | 18.4(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM432 | 432 | 75 | ≥1.25 ≥1.50 ≥1.75 | 305.3x305.33 | 8(Width) 29(Length) | 2.44x8.86 | 232 | 21.62(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM445 | 445 | 75 | ≥1.25 ≥1.50 ≥1.75 | 314.31x314.31 | 8(Width) 29(Length) | 2.51x9.12 | 232 | 22.89(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM711 | 711 | 75 | ≥1.25 ≥1.50 ≥1.75 | 502.90x502.90 | 5(Width) 29(Length) | 2.51x14.59 | 145 | 36.62(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 |
