Product Details:
|
| Material: | HDPE | Color: | Can Be Customized |
|---|---|---|---|
| Place Of Origin:: | Shandong, China | Thickness:: | 0.2mm-3.0mm |
| Length:: | 50m-100m | Standard: | ASTM GRI-GM13 |
| Feature: | Anti-ultraviolet | ||
| High Light: | 2mm HDPE Geomembrane Sheet ISO9001,50m ISO9001 HDPE Geomembrane Liner,50m Fish Farm Geomembrane |
||
1. Food grade materials
PE is no poison, no odor, stable in chemistry, it will bring no pollution at all to the plants, aquatic being,dissolvant it holds, completely FOOD GRADE MATERIALS;
2. Seepage control
Seepage control is the core fuction of geomembrane, for fish ponds, waste landfill and mines and so on;
3. MOQ
For MOQ of our geomembranes, if the destination port is in China, any quantity is acceptable, such as the warehouse you have in China;
If the destination port is abroad, the MOQ of our geomembrane is at least 3 rolls.
Take the shipping cost into consideration, you are strongly advised to buy in containers.
4. Virgin or recycled materials
As known to all, there are virgin and recycled materials for geomembrane, You could make your choice by your design. LDPE
If you are not sure about the design, usually in conditions below, you had better use virgin materials:
A. Directly used under the sun, better use the virgin geomembrane;
B. Thickness below 0.5mm(not included), better use virgin geomembrane;
C. Where the recycled could be used, the virgin could always be used;
D. Places or programs that are difficult to maintain, better use virgin materials.
HDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |

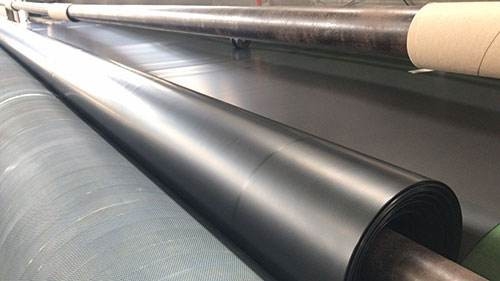

Geomembrane production
HDPE geomembrane is made by 100% virgin materials
Geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.
Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
HDPE Geomembrane Application:
(1) Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.
(2) Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
