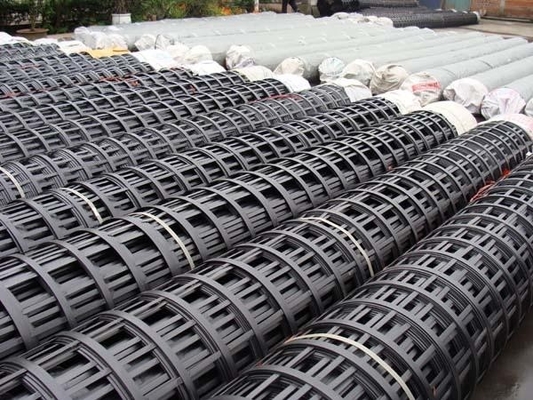

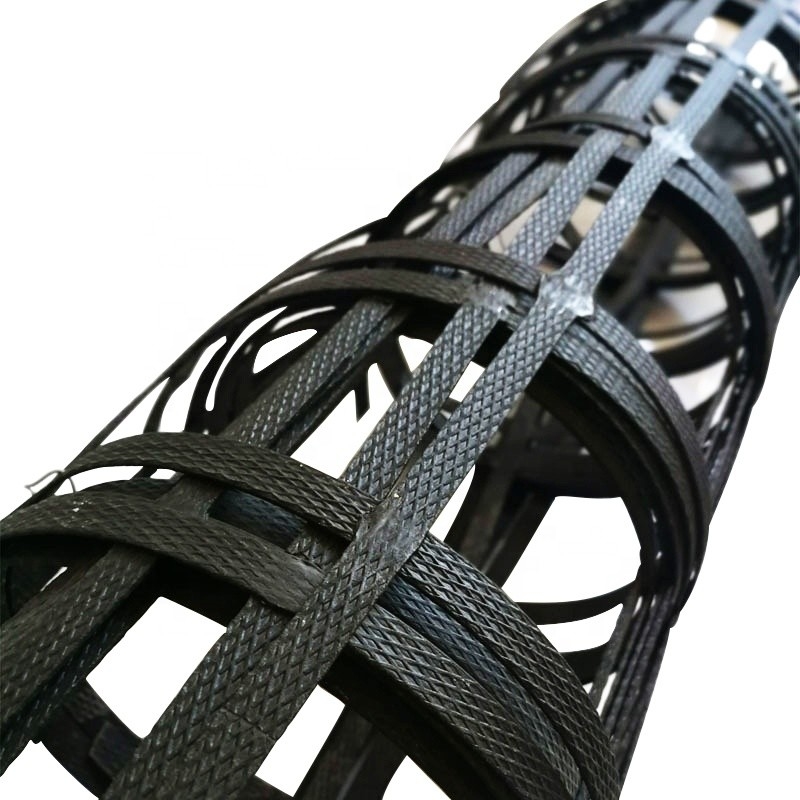

Uniaxial Stretch Geogrid Sand Fence Road Base Aging Resistance

Large Image : Uniaxial Stretch Geogrid Sand Fence Road Base Aging Resistance

Product Details:

Place of Origin:	CHINA
Brand Name:	HASSAN
Certification:	ISO CE
Model Number:	160kn/M

Payment & Shipping Terms:

Minimum Order Quantity:	1*20FT CONTAINER
Price:	$0.16 - $1.80/ Square Meter
Packaging Details:	STANDARD EXPORT PACKAGE
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T
Supply Ability:	10000 Square Meter/Square Meters per Day

Contact Now

Uniaxial Stretch Geogrid Sand Fence Road Base Aging Resistance

Description

Type:	Geogrids	After-sale Service:	Online Technical Support
Application:	Retaining Wall, Steep Slop, Dam, Road Base	Roll Length:	50m
HS Code:	3926909090	Transport Package:	Woven Bag And Poly Bag
Highlight:	Uniaxial Stretch Geogrid Sand Fence , Geogrid Sand Fence Road Base , Uniaxial fiber glass netting

Product Description

Uniaxial plastic technical grid is a kind of technical material with high strength that

uses high molecular polymer as main raw material, adds certain ultraviolet proof and aging resistance agent and makes messy chain shape molecules have drectional layout and from linear status by unidirectional extension. Plastic technical grid makes directional tension under certain temperature condition according to physical features of high molecule polymer,so its strength is very high in tension direction, tension resistance reaches 100-200 Mpa,yield elongation rate is only 4-10%, it is near to the level of low carbon steel and much better than traditional or current reinforcement materials, and is very ideal synthetic material for strengthening and reinforcement of civil projects.

Specification

uniaxial geogrid(PP)Technical Parameter (GB standard)
Item	Specification
Type	TGDG 35	TGDG 50	TGDG 80	TGDG110	TGDG 120	TGDG150	TGDG200	TGDG260	TGDG 300
Tensile Strength≥(KN/M)	35	50	80	110	120	150	200	260	300
Maximum elongation≤(%)	10
Tensile strength at 2% elongation≥(KN/M)	10	12	26	32	36	42	56	94	108
Tensile strength at 5% elongation≥(KN/M)	22	28	48	64	72	84	112	185	213

uniaxial geogrid(PE)Technical Parameter (GB standard)
Item	Specification
Type	TGDG 50	TGDG 80	TGDG100	TGDG110	TGDG120	TGDG 150	TGDG 170	TGDG 200	TGDG 220
Tensile Strength≥(KN/M)	50	80	100	110	120	150	170	200	220
Maximum elongation≤(%)	10
Tensile strength at 2% elongation≥(KN/M)	12	21	26	29	38	41	52.5	60	64
Tensile strength at 5% elongation≥(KN/M)	23	40	50	55	75.5	81	103	110	127

APPLICATION

Pavement subgrade stabilization

Area /Ground stabilization

Pavement base reinforcement

Working & load transfer platforms

Rail Track-bed stabilization

Reinforced granular foundation beds

Packing & Delivery

* Used in the various environments.

* UV stabilized.

* Used with variety of materials, including soil and concrete.

* Resistance to the low temperature. It can be used in the minus 45 degrees to 50 degrees.

* Resistance to the long term chemical or biological degradation.

* High stability and bearing capacity to increase service life.

* High tensile loads in the transverse direction.

* Prevent the material loss caused by the roadbed distortion and crack.

* Lightweight for quick installation and low construction cost.
