50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength

50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength
50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength 50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength

Large Image :  50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength

Product Details:
Place of Origin: CHINA
Brand Name: HASSAN
Certification: ISO CE
Model Number: 160kn/M
Payment & Shipping Terms:
Minimum Order Quantity: 1*20FT CONTAINER
Price: $0.16 - $1.80/ Square Meter
Packaging Details: STANDARD EXPORT PACKAGE
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 Square Meter/Square Meters per Day

50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength

Description
Type: Geogrids After-sale Service: Online Technical Support
Application: Retaining Wall, Steep Slop, Dam, Road Base Roll Length: 50m
HS Code: 3926909090 Transport Package: Woven Bag And Poly Bag
High Light:

Biaxial geo grid mesh

,

geo grid mesh Polypropylene

,

High Strength pp wire mesh

Cheap Mining Plastic Biaxial Geogrids Polypropylene Wire Mesh

Product Description

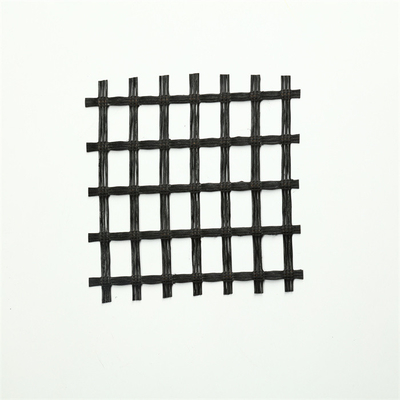

50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength 0
Uniaxial plastic technical grid is a kind of technical material with high strength that
uses high molecular polymer as main raw material, adds certain ultraviolet proof and aging resistance agent and makes messy chain shape molecules have drectional layout and from linear status by unidirectional extension. Plastic technical grid makes directional tension under certain temperature condition according to physical features of high molecule polymer,so its strength is very high in tension direction, tension resistance reaches 100-200 Mpa,yield elongation rate is only 4-10%, it is near to the level of low carbon steel and much better than traditional or current reinforcement materials, and is very ideal synthetic material for strengthening and reinforcement of civil projects.
Specification
uniaxial geogrid(PP)Technical Parameter (GB standard)
Item
Specification
Type
TGDG
35
TGDG
50
TGDG
80
TGDG110
TGDG
120
TGDG150
TGDG200
TGDG260
TGDG
300
Tensile Strength≥(KN/M)
35
50
80
110
120
150
200
260
300
Maximum elongation≤(%)
10
Tensile strength at 2% elongation≥(KN/M)
10
12
26
32
36
42
56
94
108
Tensile strength at 5% elongation≥(KN/M)
22
28
48
64
72
84
112
185
213
uniaxial geogrid(PE)Technical Parameter (GB standard)
Item
Specification
Type
TGDG
50
TGDG
80
TGDG100
TGDG110
TGDG120
TGDG
150
TGDG
170
TGDG
200
TGDG
220
Tensile Strength≥(KN/M)
50
80
100
110
120
150
170
200
220
Maximum elongation≤(%)
10
Tensile strength at 2% elongation≥(KN/M)
12
21
26
29
38
41
52.5
60
64
Tensile strength at 5% elongation≥(KN/M)
23
40
50
55
75.5
81
103
110
127
50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength 1
APPLICATION
50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength 2
50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength 3
1. Pavement subgrade stabilization
2. Area /Ground stabilization
3. Pavement base reinforcement
4. Working & load transfer platforms
5. Rail Track-bed stabilization
6. Reinforced granular foundation beds
Packing & Delivery

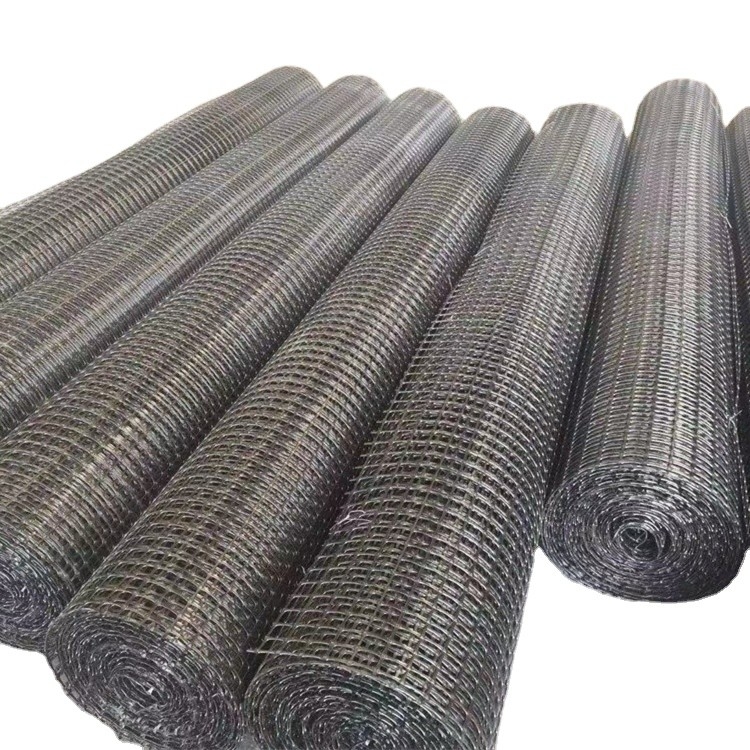

50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength 4
50m Mining Plastic Biaxial Geo Grid Mesh Polypropylene High Strength 5
* Used in the various environments.
* UV stabilized.
* Used with variety of materials, including soil and concrete.
* Resistance to the low temperature. It can be used in the minus 45 degrees to 50 degrees.
* Resistance to the long term chemical or biological degradation.
* High stability and bearing capacity to increase service life.
* High tensile loads in the transverse direction.
* Prevent the material loss caused by the roadbed distortion and crack.
* Lightweight for quick installation and low construction cost.
