Product Details:
|
Type: | Geogrids | Application: | Garage & Shed, Soft Soil Reinforcement |
---|---|---|---|
Raw Material:: | Fibergalss | Certificate: | CE /ISO9001 |
Color: | Black | Length: | 50-200m |
Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects | Thickness: | Can Be Customized |
High Light: | Cement Pavement ground stabilisation mesh,ground stabilisation mesh Fiberglass,Cement Pavement Black dirt retaining mesh |
Product Introduction

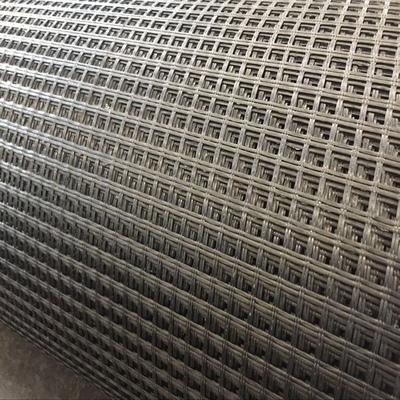

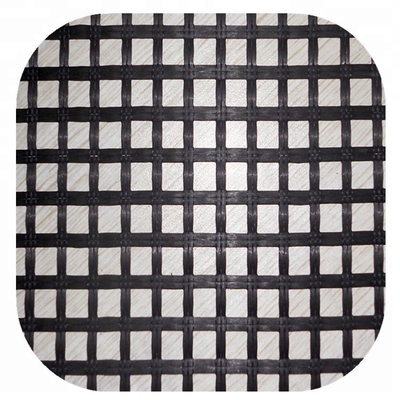

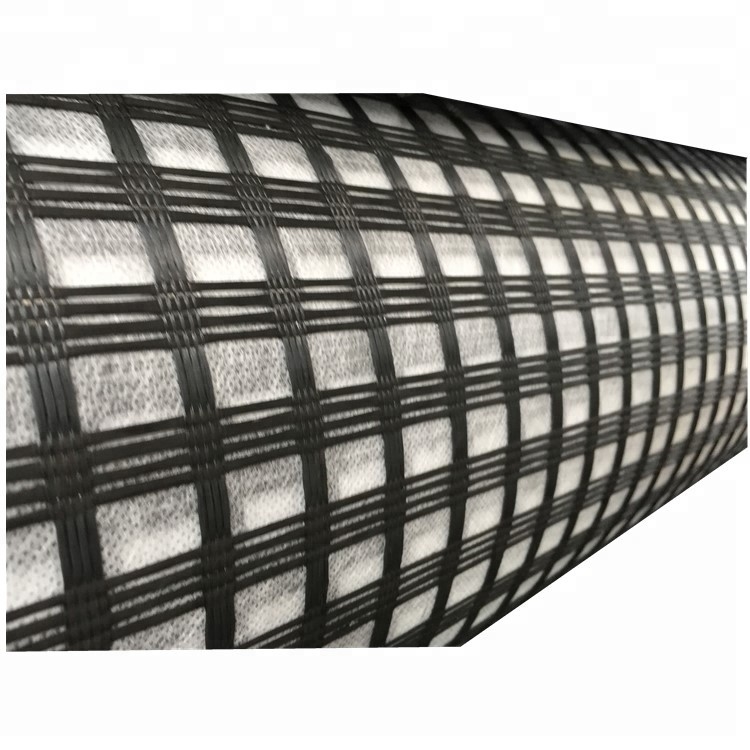

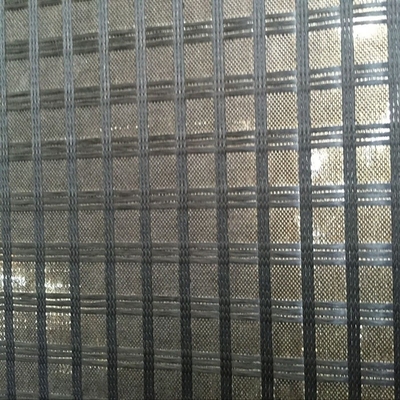

Fiberglass geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high favorable property of alkali resistance and aging resistance.
Specification
Property | Test Method |
TGSB 30-30 |
TGSB 40-40 |
TGSB 50-50 |
TGSB 60-60 |
TGSB 70-70 |
TGSB 80-80 |
TGSB 90-90 |
TGSB 100-100 |
TGSB 120-120 |
TGSB 130-130 |
|
Ultimate Tensile Strength(1)(Kn/m) | MD | EN ISO 10139 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 |
CD | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | 130 | ||
Elongation at Maximum Load(%) | MD | 3 | ||||||||||
CD | 3 | |||||||||||
Approximate Mesh Size(mm) | 12.7*12.7 25.4*25.4 40*40 | |||||||||||
Roll Width(m) | 1-6 | |||||||||||
Roll Length(m) |
50-200 |
Product Function
1. Maintenance of old asphalt road reinforcement of asphalt pavement.
2. Converting old cement concrete road into composite road.
3. Restraining reflection cracking caused by block shrinkage.
4. Preventing and controlling the cracking caused by new and old combination and uneven settlement.
5. Road extension.
6. Reinforcement of soft soil foundation and overall strength of roadbed.
