Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic

Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic

Large Image :  Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic

Product Details:
Place of Origin: CHINA
Brand Name: HASSAN
Certification: CE ISO9001
Model Number: HDPE
Payment & Shipping Terms:
Minimum Order Quantity: 5,000 square meters
Price: $0.16 - $1.80/ Square Meter
Packaging Details: Standard Export Packing
Delivery Time: 3-15days
Payment Terms: L/C, T/T
Supply Ability: 300000 square meters per day
Contact Now

Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic

Description
Material: 100% Vigrin HDPE Color: Can Be Customized
Application:: Landfill Fish Farm Pond Liner Swimming Pool Thickness: 0.1mm-2.0mm
Width: 1m~8m Standard: GB/ASTM GRI-GM13
Certification:: CE/ISO9001 Package: Woven Plastic Bags
High Light:

Waterproof HDPE Geomembrane Liner GRI

,

HDPE Geomembrane Liner GRI GM13

,

Waterproof GM13 hdpe dam liners

Best Price Landfill Aquaculture Fish Farm HDPE Pond Liner Geomembrane HDPE

Product Description

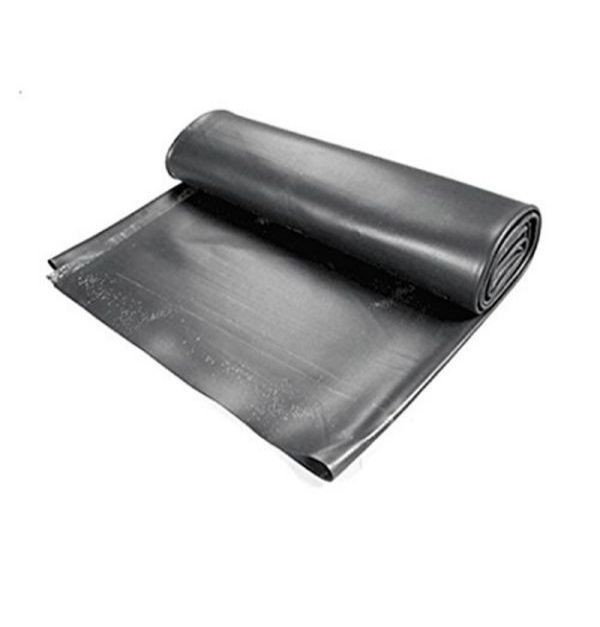

Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 0
The Geomembrane liners are plastic sheets or films made of High Density Polyethylene(HDPE), Low density Polyethylene(LDPE) and linear low density polyethelene(LLDPE) by film blown or extrusion process. HDPE Geomembranes are the most popular anti seepage material.They are the high density version of PE plastic and is harder and denser than the LDPE.Their main component is 97.5% HDPE resin,about 2.5% is carbon black, anti aging component, anti oxidizing component, UV absorbent and stabilizer and so on.They aremanufactured under permanent quality control and comply with national and international standards.
Technical Parameters
Spec
Properties
Test method ASTM

GMS 0.5

GMS0.75

GMS 1.0

GMS1.25

GMS1.5

GMS2.0
Thickness
D5199
0.5mm
0.75mm
1.00mm
1.25mm
1.50mm
2.00mm
Density (≥ g/cc)
D1505
0.96
0.96
0.96
0.96
0.96
0.96
Tensile Properties(Each direction)(≥)
●Yield strength
●Break strength
●Yield elongation
●break elongation
D 6693
Type IV
8 KN/m
14 KN/m
12%
700%
11 KN/m
20 KN/m
12%
700%
15KN/m
27 KN/m
12%
700%
18 KN/m
33 KN/m
12%
700%
22 KN/m
40 KN/m
12%
700%
29 KN/m
53 KN/m
12%
700%
Tear Resistance(≥)
D 1004
64 N
93 N
125 N
156 N
187 N
249 N
Puncture Resistance(≥)
D 4833
160 N
240 N
320 N
400 N
480 N
640 N
Stress Crack Resistance(≥)
D 5397
300 hr.
300 hr.
300 hr.
300 hr.
300 hr.
300 hr.
Carbon Black Content
D 1603
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
Oxidative Induction Time(OIT) (≥)(a) Standard OIT-or- (b)High Pressure OIT
D 3895

D 5885
100 min

400 min
100 min

400 min
100 min

400 min
100 min

400 min
100 min

400 min
100 min

400 min
Product Classification
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 1
Textured surface
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 2
Smooth surface
Product Features
They have strong ability for waterproof,anti seepage and isolation, aging resistance, good welding performance, convenient construction, root resistance and other characteristics. They are mainly used in aquaculture,sewage treatment pond,river embankment reservoir, channels, lake dam, subway, landfill liners and so on.
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 3
Anti seepage:
Corrosion resistance,waterproof
Firm:High tensile strength and elongation,
Excellent stress cracking resistance property
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 4
Long lasting:Stable in chemical structure,
anti aging, anti oxidizing,UV resistant
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 5
Safe:No taste,no poison,not dissolve
with acid,alkali, salt or organic solvent

Production Process
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 6

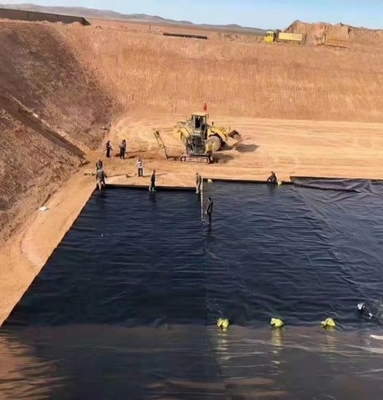

Product Application
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 7
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 8
Impermeable HDPE Geomembrane Liner GRI GM13 Waterproof Plastic 9
