Product Details:
|
| Material: | HDPE | Color: | Can Be Customized |
|---|---|---|---|
| Package: | Woven Bag | Length: | 50-200m/roll |
| Width: | 1-5.8m | Thickness: | 0.2-5mm |
| High Light: | 0.5mm HDPE Geomembrane Liner,HDPE Geomembrane Liner Low Permeability 1m,Geomembrane 1.5mm hdpe liner |
||

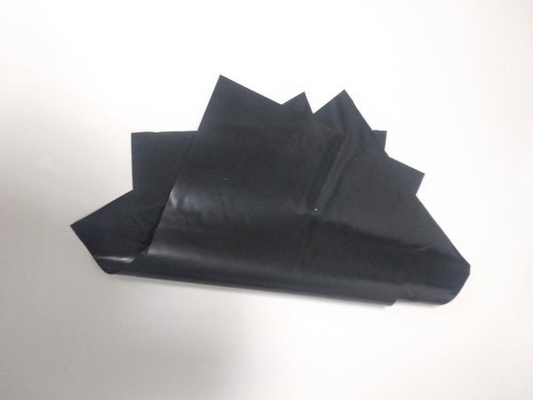

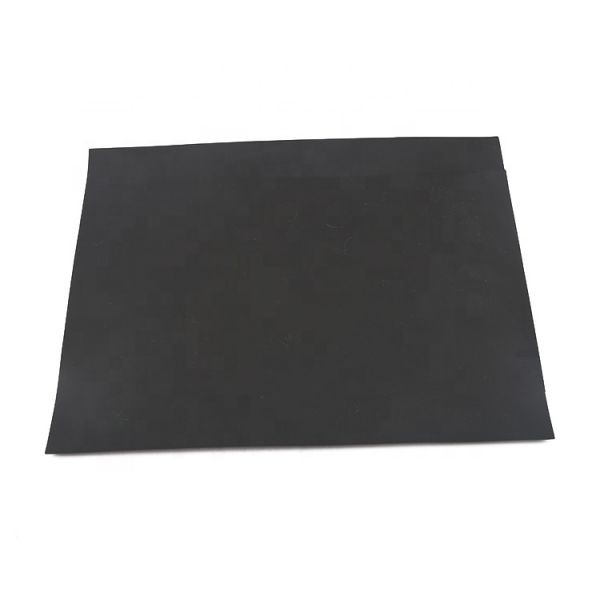

0.5 Mm Hdpe Fish Farming Pond Liner/ Tank Geomembrane Black Sheet Fish Farming Pond Liner
Product Description:
Geomembrane is very low permeability synthetic membrane liner or barrier used with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project,structure, or system. Geomembranes are made from relatively thin continuous polymeric sheets,but they can also be made from the impregnation of geotextiles with asphalt,elastomer or polymer sprays,or as multilayered bitumen geocomposites. Continuous polymer sheet geomembranes are, by far, the most common.
HDPE Geomembrane pond liner Technical Parameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Applications:
1. Various waterproof and anti-seepage projects such as landfills,solid waste treatment stations,tailings storage yards.
2. sewage ponds,petrochemicals, construction, water conservancy,mining,landscape gardens,subway tunnels,
aquaculture,livestock biogas digesters, etc.
3. Environmental protection projects:Landfill,sewage treatment plants,power plant regulating pools,industrial and hospital solid wastes,etc.
4. Mining:heap leaching platforms, conduit and retention channels and wells for liquid solutions, final disposal reservoirs.
Blue and green geomembrane
Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
