Product Details:
|
| Color: | Black | Application: | Retaining Wall, Dam, Railway, Highway |
|---|---|---|---|
| Function: | Distributing Load, Anti-deforming, Non-skid | Feature: | FeatureCorrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant |
| Product Name: | Honeycomb Driveway Grid | Cell Depth: | 100mm |
| High Light: | Road Construction HDPE Geocell,100mm Depth HDPE Geocell,HDPE Honeycomb Driveway Grid |
||

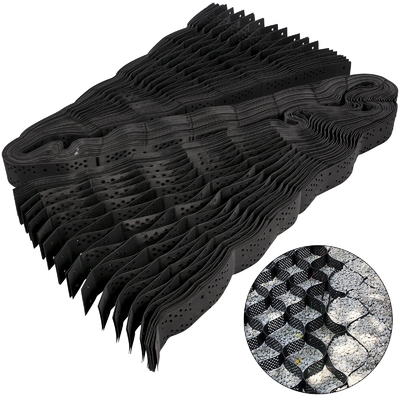

Geocell with texture and perforation

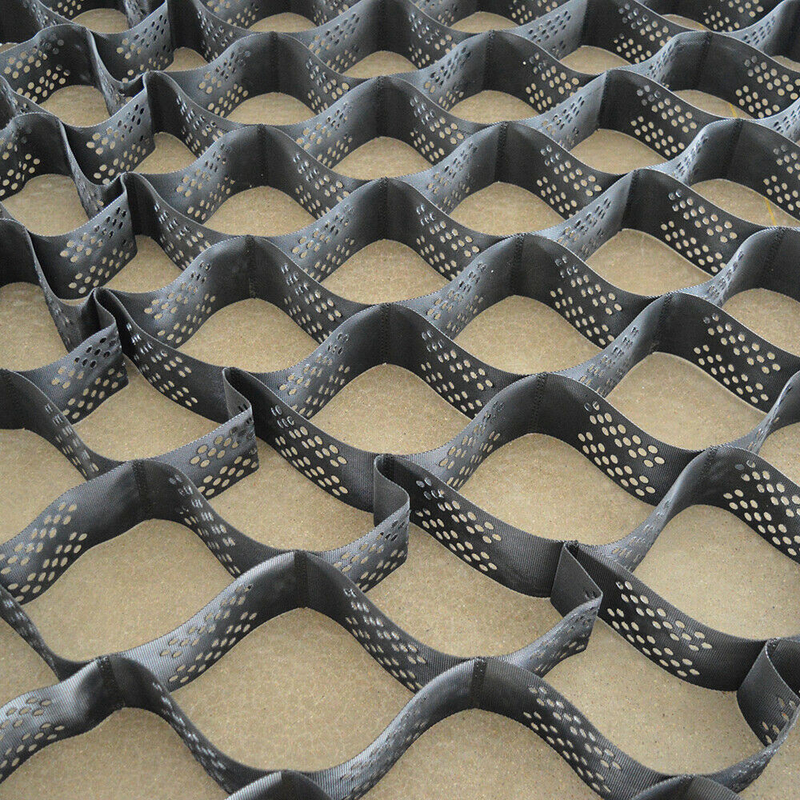

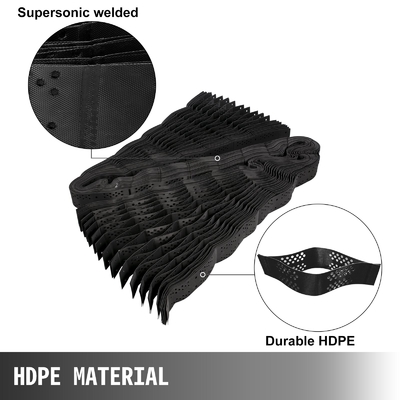

Geocell is made of ultrasonically-welded HDPE and can be expanded to form honeycomb structure.
Cells are then filled with readily available granular materials and compacted.
The Geocell solution means to challenge soil stability problems in lots of applications through the high-strength network of interconnected cells.
Geocell Feature
1. High tensile strength in both the warp and weft direction
2. low elongation
3. Excellent temperature range
4. Good anti-age and alkali-resistance
How Ceocell Works
When filled with compacted materials,it creats a new composite entity that possesses enhanced mechanical and geotechnical products.
When the soil contained within Geocell is subjected to pressure,it causes lateral stress on perimeter cell walls.
| Model | Bonded Range(mm) |
▲Cell Depth (mm) |
Sheet Thickness (mm) |
Expanded Cell Size (mm) |
▲Cells Quantity | Section Size (m) |
Cells Per Section |
Section Area (m2) |
| GM356 | 356 | 75 | ≥1.25 ≥1.50 ≥1.75 |
251.45x251.45 | 10(Width) 29(Length) |
2.52x7.30 | 290 | 18.4(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM432 | 432 | 75 | ≥1.25 ≥1.50 ≥1.75 |
305.3x305.33 | 8(Width) 29(Length) |
2.44x8.86 | 232 | 21.62(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM445 | 445 | 75 | ≥1.25 ≥1.50 ≥1.75 |
314.31x314.31 | 8(Width) 29(Length) |
2.51x9.12 | 232 | 22.89(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM711 | 711 | 75 | ≥1.25 ≥1.50 ≥1.75 |
502.90x502.90 | 5(Width) 29(Length) |
2.51x14.59 | 145 | 36.62(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 |
