Product Details:
|
| Material: | High-density Polyethylene | Color: | Black /Green/White/Tan |
|---|---|---|---|
| Thickness: | 1.25mm--1.50mm--1.75mm | Height: | 75mm--200mm |
| Solder Distance:: | 365mm~ 711mm | Peel Strength Of Welding Point:: | 1000~1420N/10CM |
| Surface Treatment:: | Smoothly Or Textured | Warranty: | More Than 5 Years |
| High Light: | High Density Polyethylene HDPE Geocell,Slope Stabilization HDPE Geocell,Geocell Grid For Slope Protection |
||

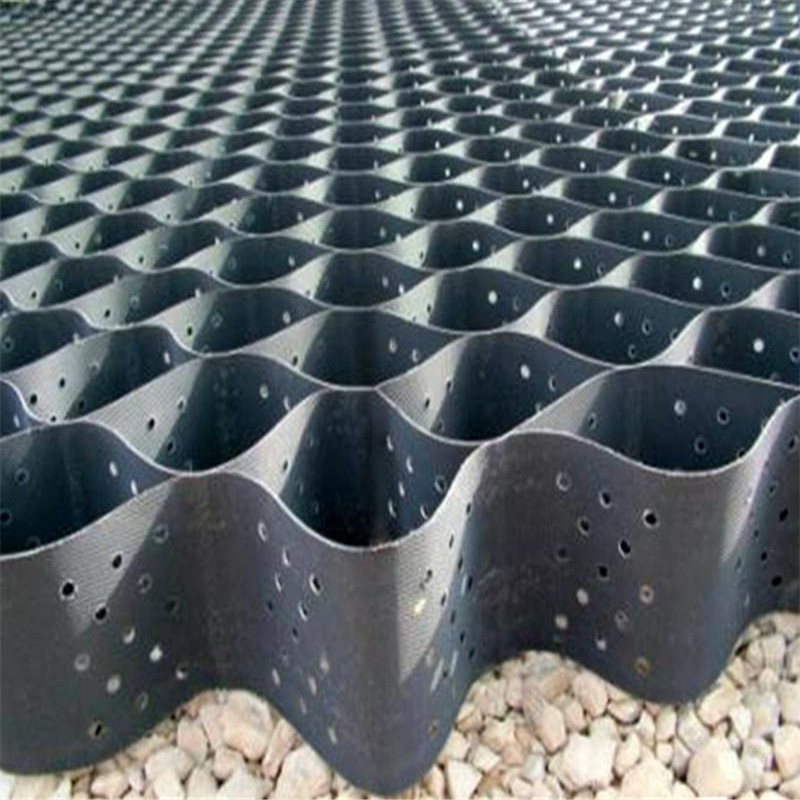

High-density Polyethylene Geocell used in Slope Stabilization
Geocell with texture and perforation
Geocell is made of ultrasonically-welded HDPE and can be expanded to form honeycomb structure.
Cells are then filled with readily available granular materials and compacted.
The Geocell solution means to challenge soil stability problems in lots of applications through the high-strength network of interconnected cells.
The Characteristics of Geocell
The product has the characteristics of customizable size, flexible expansion, easy transportation and construction, light material, wear resistance, stable chemical properties, light and oxygen aging resistance, acid and alkali resistance, anti-skid, anti-deformation, which can enhance the bearing capacity of the roadbed and disperse the load.
How Ceocell Works
When filled with compacted materials,it creats a new composite entity that possesses enhanced mechanical and geotechnical products.
When the soil contained within Geocell is subjected to pressure,it causes lateral stress on perimeter cell walls.
| Model | Bonded Range(mm) |
▲Cell Depth (mm) |
Sheet Thickness (mm) |
Expanded Cell Size (mm) |
▲Cells Quantity | Section Size (m) |
Cells Per Section |
Section Area (m2) |
| GM356 | 356 | 75 | ≥1.25 ≥1.50 ≥1.75 |
251.45x251.45 | 10(Width) 29(Length) |
2.52x7.30 | 290 | 18.4(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM432 | 432 | 75 | ≥1.25 ≥1.50 ≥1.75 |
305.3x305.33 | 8(Width) 29(Length) |
2.44x8.86 | 232 | 21.62(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM445 | 445 | 75 | ≥1.25 ≥1.50 ≥1.75 |
314.31x314.31 | 8(Width) 29(Length) |
2.51x9.12 | 232 | 22.89(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 | ||||||||
| GM711 | 711 | 75 | ≥1.25 ≥1.50 ≥1.75 |
502.90x502.90 | 5(Width) 29(Length) |
2.51x14.59 | 145 | 36.62(±1%) |
| 100 | ||||||||
| 150 | ||||||||
| 200 |
