Soil Stabilizer HDPE Geocell Load Support For Road

Soil Stabilizer HDPE Geocell Load Support For Road
Soil Stabilizer HDPE Geocell Load Support For Road Soil Stabilizer HDPE Geocell Load Support For Road Soil Stabilizer HDPE Geocell Load Support For Road Soil Stabilizer HDPE Geocell Load Support For Road Soil Stabilizer HDPE Geocell Load Support For Road Soil Stabilizer HDPE Geocell Load Support For Road

Large Image :  Soil Stabilizer HDPE Geocell Load Support For Road

Product Details:
Place of Origin: CHINA
Brand Name: HASSAN
Certification: ISO CE
Model Number: T1.5
Payment & Shipping Terms:
Minimum Order Quantity: 1*20FT CONTAINER
Price: US $0.6-1.5/ Square Meter
Packaging Details: STANDARD EXPORT PACKAGE
Payment Terms: L/C, T/T

Soil Stabilizer HDPE Geocell Load Support For Road

Description
Color: Black Application: Retaining Wall, Dam, Railway, Highway
Function: Distributing Load, Anti-deforming, Non-skid Thickness(smooth): 1.1-1.2mm
Thickness(textured):: 1.4-1.5mm Height Of Geocell: 50-75-100-150-200mm
High Light:

Soil Stabilizer HDPE Geocell

,

Road HDPE Geocell

,

HDPE Geocell Ground Grid

HDPE Geocell Manufacturer Soil Stabilizer Geocells Load Support For Road

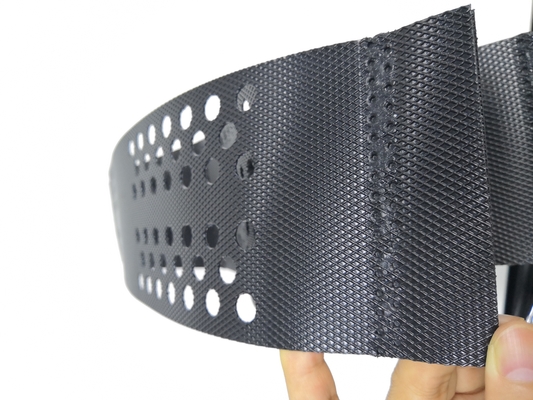

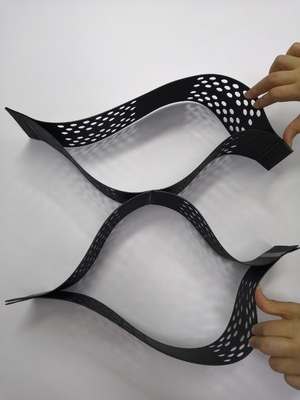

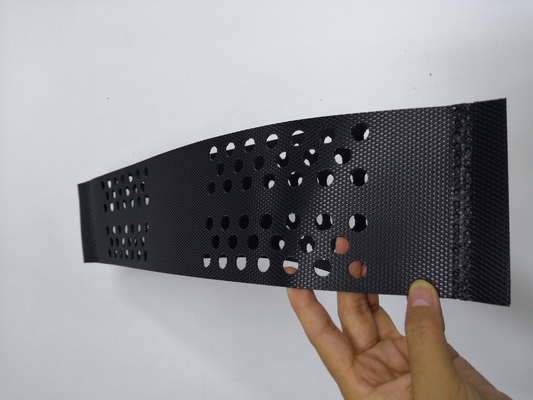

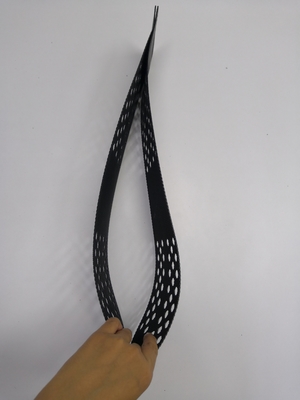

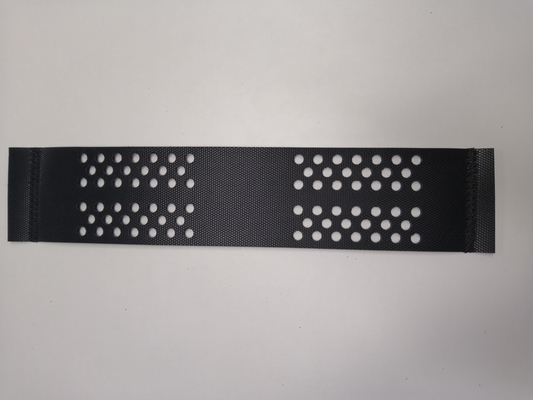

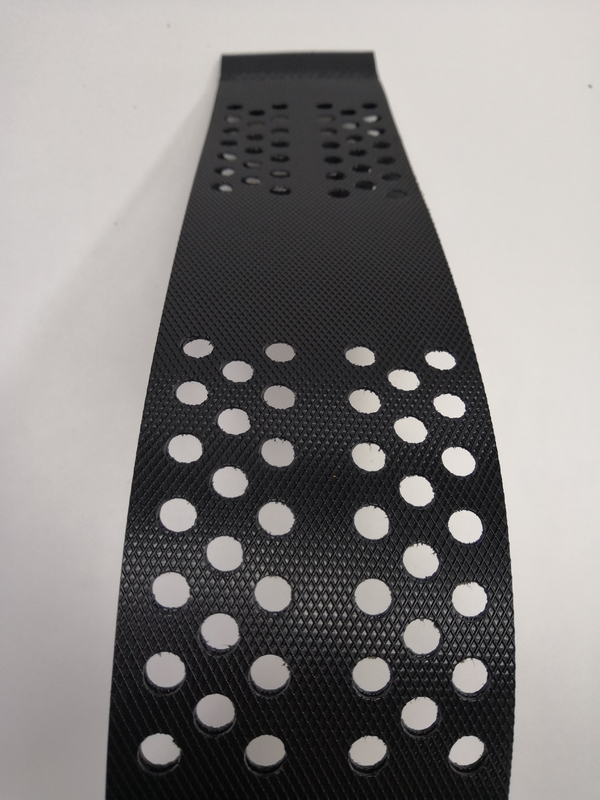

Geocells are made of lightweight, flexible, three-dimensional, expandable panels engineered from Ecoloy HDPE for greater chemical and physical performance. Cellular Confinement Systems are a cost-effective way to stabilise soil, construct retaining walls and ensure long term erosion control.

An extensive quality control program and the latest technology ensures that Geocells
are manufactured to the highest international standards and ultrasonically welded for maximum performance.



Geocell Advantage

1 Retractable and transport can be shrunk and stacked, the construction can be mesh, fill in the dirt, gravel, concrete and other loose material, with strong lateral restrictions and the stiffness of the structure.
2 Light material, abrasion resistance, stable chemical properties, photooxidation aging, acid and alkali, applicable to different soil and desert soil conditions.
3 High lateral limit and non slip, anti deformation, effectively enhance the bearing capacity of the subgrade and dispersion
load.
4 Change the geocell height, welding geometric size can meet the needs of different projects.
5 Flexible, small volume, convenient connection, fast construction speed.

  1.

Specification



Model Bonded
Range(mm)
▲Cell Depth
(mm)
Sheet Thickness
(mm)
Expanded Cell Size
(mm)
▲Cells Quantity Section Size
(m)
Cells
Per Section
Section Area
(m2)
GM356 356 75 ≥1.25
≥1.50
≥1.75
251.45x251.45 10(Width)
29(Length)
2.52x7.30 290 18.4(±1%)
100
150
200
GM432 432 75 ≥1.25
≥1.50
≥1.75
305.3x305.33 8(Width)
29(Length)
2.44x8.86 232 21.62(±1%)
100
150
200
GM445 445 75 ≥1.25
≥1.50
≥1.75
314.31x314.31 8(Width)
29(Length)
2.51x9.12 232 22.89(±1%)
100
150
200
GM711 711 75 ≥1.25
≥1.50
≥1.75
502.90x502.90 5(Width)
29(Length)
2.51x14.59 145 36.62(±1%)
100
150
200


Soil Stabilizer HDPE Geocell Load Support For Road 0Soil Stabilizer HDPE Geocell Load Support For Road 1Soil Stabilizer HDPE Geocell Load Support For Road 2Soil Stabilizer HDPE Geocell Load Support For Road 3
