Product Description:
The HDPE geomembrane liner has a width range of 1-12m, making it suitable for a variety of project sizes. It also comes in two surface options - smooth and textured - to cater to specific project requirements. The smooth surface option is ideal for applications where low friction is necessary, while the textured surface provides enhanced slip resistance and improved stability.
The carbon black content of the HDPE geomembrane liner is between 2.0-3.0%, which enhances its UV resistance and prolongs its lifespan. This makes it an excellent choice for long-term projects that require durability and reliability.
The HDPE geomembrane liner is designed to withstand high hydrostatic pressure resistance of ≥1.0Mpa. This makes it ideal for use in fish ponds and other water containment projects where water pressure is a significant concern. The liner provides an impermeable barrier that prevents water from seeping through to the ground or surrounding areas.
The HDPE geomembrane liner also comes in varying thicknesses ranging from 0.1-3.0mm. The thickness of the liner is dependent on the project requirements and can be customized based on specific needs. The thicker the liner, the more durable and puncture-resistant it becomes.
Overall, the HDPE Geomembrane Liner is an excellent choice for fish ponds and other water containment projects. Its impermeable barrier, high hydrostatic pressure resistance, and customizable thickness make it a reliable option for long-term use. With its smooth or textured surface options and carbon black content, the HDPE geomembrane liner is a versatile product that can be used in a variety of environmental protection projects.
Features:
- Product Name: HDPE Geomembrane Liner
- Tensile Strength: ≥15MPa
- Appearance: Smooth
- Thickness: 0.1-3.0mm
- Elongation at Break: ≥700%
- Width: 1-12m
This HDPE Geomembrane Liner is perfect for fish pond applications due to its high tensile strength and smooth appearance. With a thickness range of 0.1-3.0mm and width options ranging from 1-12m, this liner is versatile and can be tailored to fit any size or shape fish pond. Its elongation at break of ≥700% ensures that it can withstand any potential stressors that may occur within the pond.
Technical Parameters:
| NO |
Item/Specification |
Unit |
Value |
Value |
Value |
Value |
Value |
Value |
Value |
| 1 |
THICKNESS |
mm |
0.75 |
1.0 |
1.25 |
1.5 |
2.0 |
2.5 |
3.0 |
| 2 |
DENSITY |
gr/m3 |
>0.94 |
>0.94 |
>0.94 |
>0.94 |
>0.94 |
>0.94 |
>0.94 |
| 3 |
YIELD STRENGTH |
KN/m |
≥11 |
≥15 |
≥18 |
≥22 |
≥29 |
≥37 |
≥44 |
| 4 |
YIELD ELONGATION |
% |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
≥12 |
| 5 |
BREAK STRENGTH |
KN/m |
≥20 |
≥27 |
≥33 |
≥40 |
≥53 |
≥67 |
≥80 |
| 6 |
BREAK ELONGATION |
% |
≥700 |
≥700 |
≥700 |
≥700 |
≥700 |
≥700 |
≥700 |
| 7 |
PUNCTURE RESISTANCE
|
N |
≥240 |
≥320 |
≥400 |
≥480 |
≥640 |
≥800 |
≥960 |
| 8 |
CARBON BLACK CONTENT |
% |
2-3 |
2-3 |
2-3 |
2-3 |
2-3 |
2-3 |
2-3 |

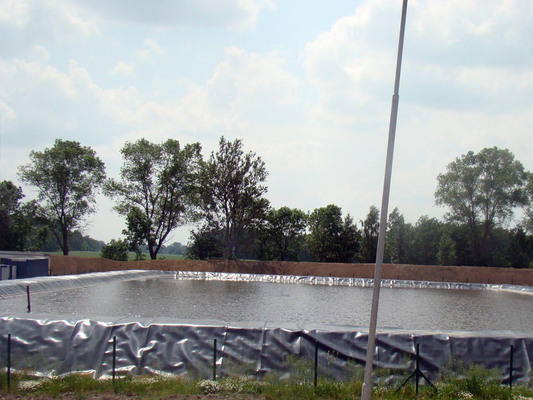

This HDPE geomembrane liner is suitable for fish pond, reservoir, and other water containment applications.
Applications:
HAISAN HDPE Geomembrane Liner is designed to provide superior tensile strength, with a minimum of 15MPa, and elongation at break of at least 700%. This makes it an ideal choice for projects where durability and strength are critical, such as reservoirs, canals, and other water storage facilities.
In addition to its superior strength, HAISAN HDPE Geomembrane Liner also offers excellent hydrostatic pressure resistance, with a minimum of 1.0Mpa. This makes it an ideal choice for projects that require high levels of water resistance, such as dams, levees, and other water management systems.
HAISAN HDPE Geomembrane Liner is available in both smooth and textured surfaces, providing flexibility in terms of application. It is also available in widths ranging from 1-12m, making it suitable for a wide range of project sizes.
The typical application occasions and scenarios for HAISAN HDPE Geomembrane Liner include:

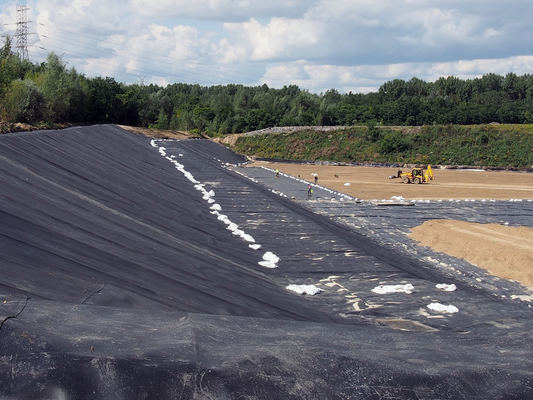

- Landfills: as a barrier to prevent the leakage of harmful chemicals and pollutants into the ground and surrounding environment.
- Reservoirs: to prevent water seepage and to ensure water storage facilities remain full and functional.
- Dams and levees: to provide a robust and durable water barrier to prevent flooding and protect surrounding areas.
- Canals and irrigation systems: to prevent water loss and ensure efficient water management.
- Mining operations: as a barrier to prevent water contamination and to contain pollutants.
Overall, HAISAN HDPE Geomembrane Liner is an excellent choice for any project that requires a high-quality, durable, and reliable waterproof membrane. Its superior strength and hydrostatic pressure resistance make it ideal for a wide range of applications, from landfill sites to water storage facilities.
Support and Services:
The HDPE Geomembrane Liner product comes with technical support and services to ensure its optimal performance and longevity. Our team of experts is available to provide guidance on product installation, welding, and repair techniques. We can also help with project design and customization to meet specific requirements. Additionally, we offer testing and inspection services to ensure the liner meets all necessary standards and specifications. Our goal is to provide comprehensive support throughout the lifespan of the product to ensure customer satisfaction.
Packing and Shipping:
Product Packaging:

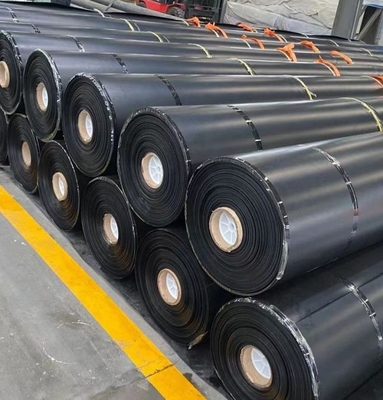

- Rolls of HDPE geomembrane liner will be wrapped with stretch film or woven bags.
- Labels with product name, size, quantity, and other necessary information will be attached to each roll.
- The rolls will then be placed on pallets and secured with straps or shrink wrap.
Shipping:
- Shipping will be arranged according to the customer's preference and requirements.
- The rolls of HDPE geomembrane liner will be loaded onto trucks, containers, or other transportation vehicles.
- The packages will be inspected and verified before shipping to ensure they meet the necessary standards.
- The customer will be notified of the shipping details, including the estimated delivery date and tracking information.
FAQ:
Q: What is HDPE Geomembrane Liner?
A: HDPE Geomembrane Liner is a high-density polyethylene liner used for containment of fluids, solids, and gases in various applications, such as landfills, mining, and agriculture.
Q: What are the advantages of using HAISAN HDPE Geomembrane Liner?
A: HAISAN HDPE Geomembrane Liner is made from high-quality raw materials, which makes it resistant to UV radiation, chemicals, and punctures. It has excellent tensile strength and elongation properties, making it ideal for use in harsh environments.
Q: Can HAISAN HDPE Geomembrane Liner be customized?
A: Yes, HAISAN HDPE Geomembrane Liner can be customized to meet specific project requirements, such as thickness, width, and length.
Q: Where is HAISAN HDPE Geomembrane Liner manufactured?
A: HAISAN HDPE Geomembrane Liner is manufactured in China.
Q: What certifications does HAISAN HDPE Geomembrane Liner have?
A: HAISAN HDPE Geomembrane Liner is certified by ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007.
