Product Details:
|
| Material: | LDPE | Color: | Can Be Customized |
|---|---|---|---|
| Package: | Woven Bag | Length: | 50-200m/roll |
| Width: | 1-5.8m | Thickness: | 0.2-5mm |
| High Light: | Woven Coated LDPE Geomembrane Liner,RPE Pond Liner Light Weight,Light Weight farm dam liners |
||
Product Description:
This polyethylene liners are engineered to offer great strength in a light weight liner material. The material is uv stabilized to offer years of worry free protection against the damaging rays of the sun.
Unlike regular multi-layer liners which simply stack the layers of liner on top of each other, these liners are woven together— this gives the ultimate in strength. Because of the light weight and strength, these liners can be manufactured in large panels.
This versatile products is used in many cover applications. Woven coated liner material are high strength, light weight products, suitalbe for many containment needs. It is a flexible material that is available in custom sized panels.
LDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Application:
1. Mining: RPE pond liner suitable mining: washing pool, pool heap leaching.
2. Fish farm pond liner: Aquaculture for fish, tilapia, shrimp, etc.
3. Lotus root cultivation: Prevent the root grow into the soil. The liner isolate the root and the soil.

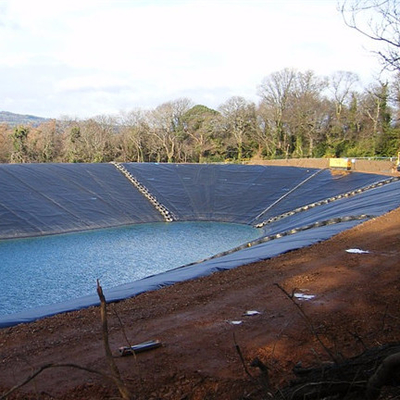

4. Landfill site: RPE pond liner is the most widely used in landfill sealing cover.
Blue and green geomembrane
Packing and Shipping

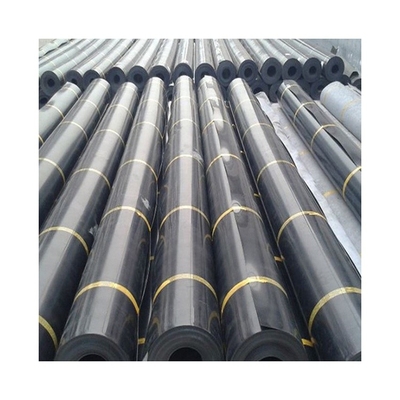

1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.

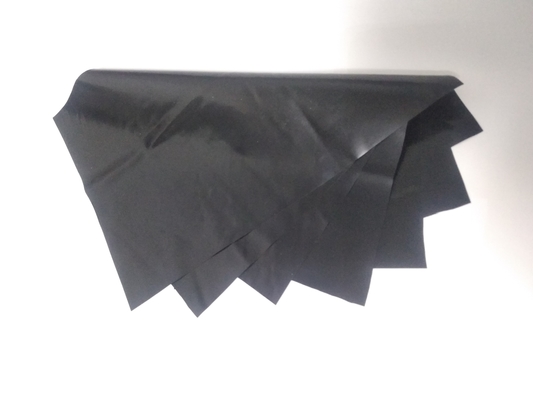

Samples are for your review.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
