Product Details:
|
| Material: | LDPE | Color: | Can Be Customized |
|---|---|---|---|
| P: | Woven Bag | L: | 50-200m/roll |
| W: | 1-5.8m | T: | 0.2-5mm |
| High Light: | 0.5mm 3mm LDPE Geomembrane Liner,LDPE Geomembrane Liner 50m,earth dam liners 50m |
||
Description:
1. Geomembrane is a kind of waterproof material with basic raw material of high molecular polymer. It is mainly divided into LDPE geomembrane, HDPE geomembrane, and all kinds of composite geomembrane.
2. Complete variety of specifications of width and thickness. Thickness: 0.3-2.5mm/Width: 2-8m .
3. Excellent environmental stress resistant cracking performance.
4. Excellent performance of chemical erosion resistance.
5. Big scope of application temperature and long service life .
6. Applied in landfill waste site, sewage and filth treatment site, tailings depot and underground construction project.
LDPE Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Application:
(1) Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture.

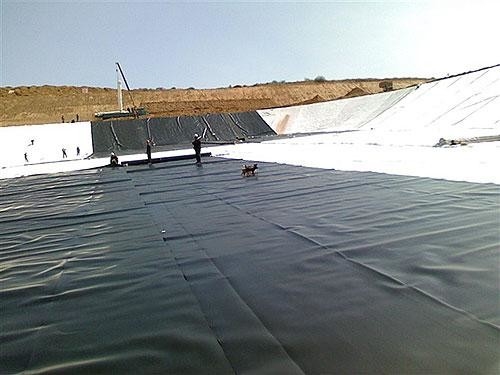

(2) Landfills:
Bottom landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3) Water Treatment System :
LDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool; and a series of water treatment systems.
(4) Mining:
LDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
Blue and green geomembrane
Packing and Shipping

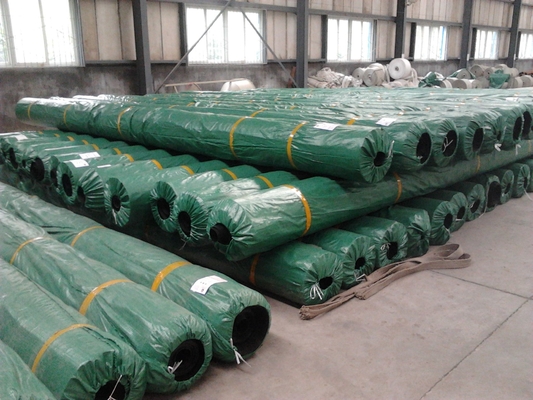

1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
