Product Details:
|
| Material: | PVC | Color: | Can Be Customized |
|---|---|---|---|
| Thickness: | 0.2mm-4mm | Width: | 1m~6m |
| Application: | Landfill,Pond,Fish Farm | Length: | 50-200m |
| High Light: | 30 Mil PVC Geomembrane Liner,Waterproof PVC Geomembrane Liner,30 Mil Prefabricated Geomembrane Liners |
||

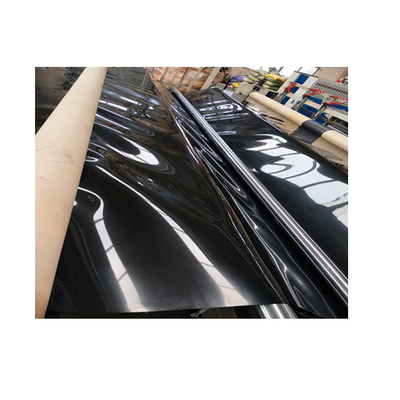

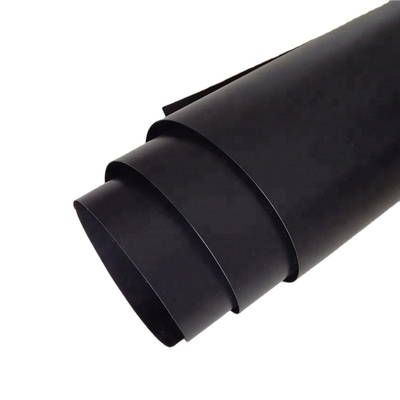

PVC geomembrane:
1. All physical factors such as anti-draw, anti-tear, and anti-stab meet the requirement of water works, chemicals, tunnels, and transportation project in most conditions.
2. Good aging, durable performance, and wide temperature arrange, it can be useful over thirty years on the condition of -60æ«60æ.
3. Anti-stab and fine friction factors.
4. Canker proof, acid and alkali proof, untoxic.
5. Lower cost per unit area, cost is 1/3«1/2 lower than that of PVC film, glass and cloth.
6. Convevient to install and dependable effect.
PVC Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A:Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A:Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A:Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
