Product Details:
|
| Material: | PVC | Color: | Can Be Customized |
|---|---|---|---|
| Thickness: | 0.2mm-4mm | Width: | 1m~6m |
| Application: | Landfill,Pond,Fish Farm | Length: | 50-200m |
| High Light: | 2mm Plastik PVC Geomembrane Film ISO9001,Fish Farm Geomembrane Film ISO9001,2mm Plastik hdpe geo membrane ISO9001 |
||
PVC Geomembrane is the low permeable synthetic PVC Geomembrane and geotechnical engineering materials which are widely used for aquaculture fish farm,solid waste containment, mining and water containment applications. BPM smooth PVC Geomembrane is made of finest quality high density polyethylene (PVC) with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our PVC Geomembrane with excellent resistance to UV radiation and is suitable for exposed conditions.
Our smooth PVC Geomembrane are fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard. Compared with traditional concrete, asphalt and compacted clay, smooth PVC Geomembrane has proven to be far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation.
PVC Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
HDPE Geomembrane and pond liner is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
Geomembrane Usage:
1. landfill,sewage or control the waste residue seashores seepage.
2. Lake dam,tailings dams,sewage dam and reservoir,channel,storage of liquid pools(pit,ore)
3. The subway ,tunnel,anti-seepage lining of basement and tunnel.
4. To control the roadbed and other foundation saline seepage.
5. Dike,the front of the sam foundation seepage prevention bedding,level of vertical impervious layer , construction cofferdam,waste field.
6. Seawater,freshwater fish farms.
7. Highway,the foundations of the highway and railway; the expansive soil and collapsible loess of the waterproof layer.
8. Anti-seepage of roofing
Blue and green geomembrane
Geomembrane production
PVC geomembrane is made by 100% virgin materials
Geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.

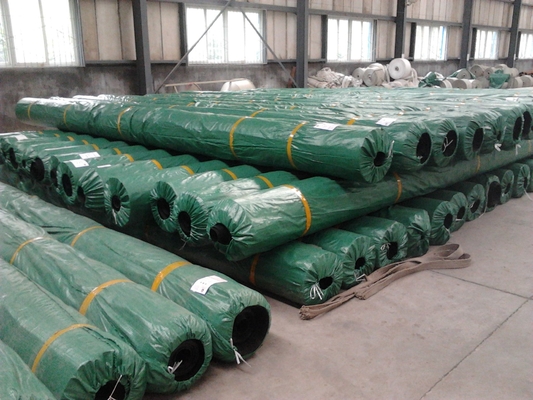

Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
PVC Geomembrane Application:
(1)Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.

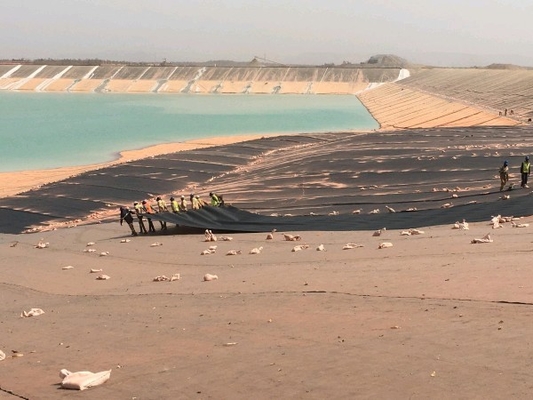

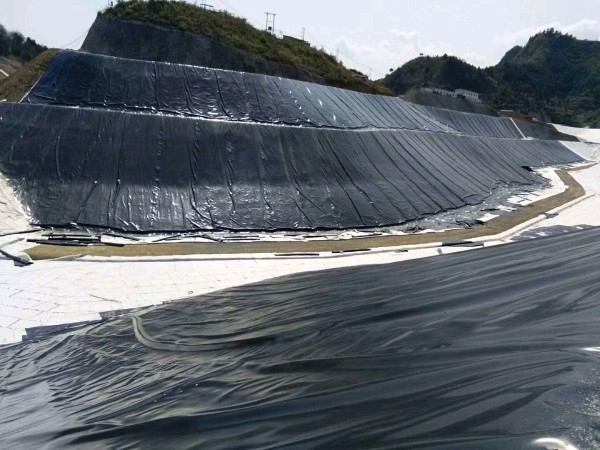

(2)Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
FAQ
1.Are you trading company or manufacturer ?
A: We are manufacturer.
2.How long is your lead time ?
A:Generally it is 4-5 days.
3.Do you provide samples ? It's free or extra ?
A:Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4.IS the size and color can be customized ?
A:Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
