Product Details:
|
| Material: | PVC | Color: | Can Be Customized |
|---|---|---|---|
| Thickness: | 0.2mm-4mm | Width: | 1m~6m |
| Application: | Landfill,Pond,Fish Farm | Length: | 50-200m |
| High Light: | Underground Waterproof HDPE Landfill Liner,Waterproof HDPE Landfill Liner Geomembrane 4mm,Underground Waterproof 1mm hdpe liner 4mm |
||
Product Introduction:

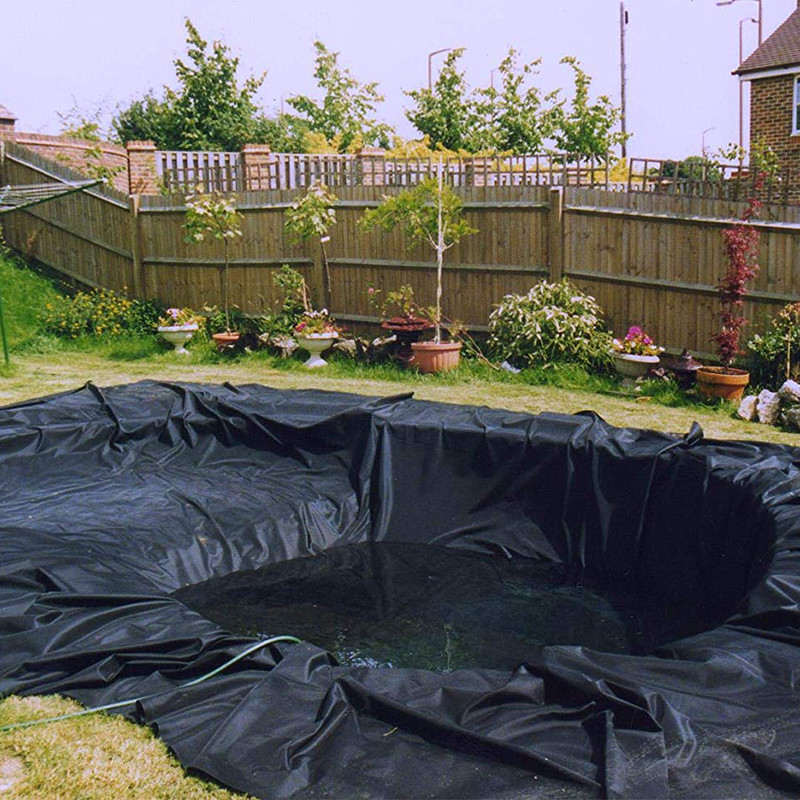

Environmental Protection hdpe smooth fish farm pond liner geomembrane
Our high density polyethylene (HDPE) geomembranes provide an impermeable barrier against a wide range of solids and liquids. They exhibit excellent chemical and UV resistance,impermeability, and high yield and welded seam strengths, which is widely used as the liner. (model according to the thickness of distinction, different thickness and different price) production capacity: thickness:0.1 mm -6 mm, width: 1-8 meters. It is suitable for seepage control in special industries, and is widely used for aquaculture, seepage control, reservoirs or sewage treatment ponds.
PVC Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
| Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Product Feature:
Geomembrane production
PVC geomembrane is made by 100% virgin materials
Geomembrane adopted the first class automatic production equipment and three-layer pressing technology. All geomembrane quality is meeting with GB, GRI and ASTM test standard.
Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
FAQ
1.Are you trading company or manufacturer ?
A: We are manufacturer.
2.How long is your lead time ?
A:Generally it is 4-5 days.
3.Do you provide samples ? It's free or extra ?
A:Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4.IS the size and color can be customized ?
A:Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
