Product Details:
|
Material: | PVC | Color: | Can Be Customized |
---|---|---|---|
Thickness: | 0.2mm-4mm | Width: | 1m~6m |
Application: | Landfill,Pond,Fish Farm | Length: | 50-200m |
High Light: | Smooth Surface PVC Geomembrane Liner,3mm PVC Geomembrane Liner,Shrimp Fish Feeding PVC Liner |
Introduction:
PVC geomembrane is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
Specification:
1. Thickness: smooth surface 0.2mm - 3.0mm,textured surface 1.0-2.0mm.
2. Width: smooth furface 1m-8m, rough surface 4m-8m.
3. Length: 50m-200m/ roll or as requested.
4. Material: HDPE, LDPE, LLDPE, PVC
5. Color: black, white, blue, green.
6. Optional surface: smooth surface, single surface textured, dual surfaces textured.
Spec Properties |
Test method ASTM |
GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693 Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
Oxidative Induction Time (OIT) (≥) (a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
Applications Of PVC Geomembrane:
The reason why this waterproofing membrane is so popular today is to mention its outstanding advantages. Not only having a high level of waterproofing, PVC membranes also bring investors the benefits of cost and shorter construction time. This product also ensures environmental safety requirements according to construction regulations.
Blue and green geomembrane
PVC Geomembrane pond liner TechnicalParameter
ASTM Standard geomembrane
Packing and Shipping
1. Packing:
PP woven geotextile bags or PE film. Or according to customers requirements.
2. Delivery:
Within 7-10 days after receiving your deposit.
Samples are for your review.
PVC Geomembrane Application:

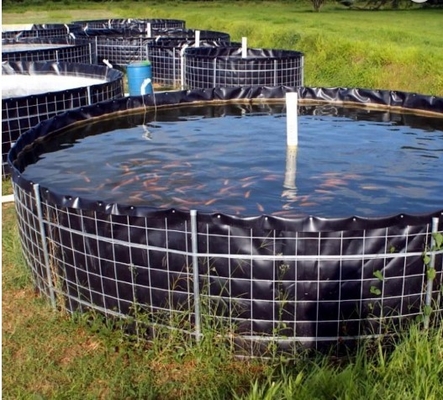

(1) Aquaculture:
Using the geomembrane anti-seepage feature;
geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.
(2) Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. How long is your lead time ?
A: Generally it is 4-5 days.
3. Do you provide samples ? It's free or extra ?
A: Sure ,we woule like to offer the samples for free change , but pls kindly pay the cost of freight by yourself.
4. IS the size and color can be customized ?
A: Sure , the thickness, width, length and color are customzed , but pls talk the details to our sales before the order.
